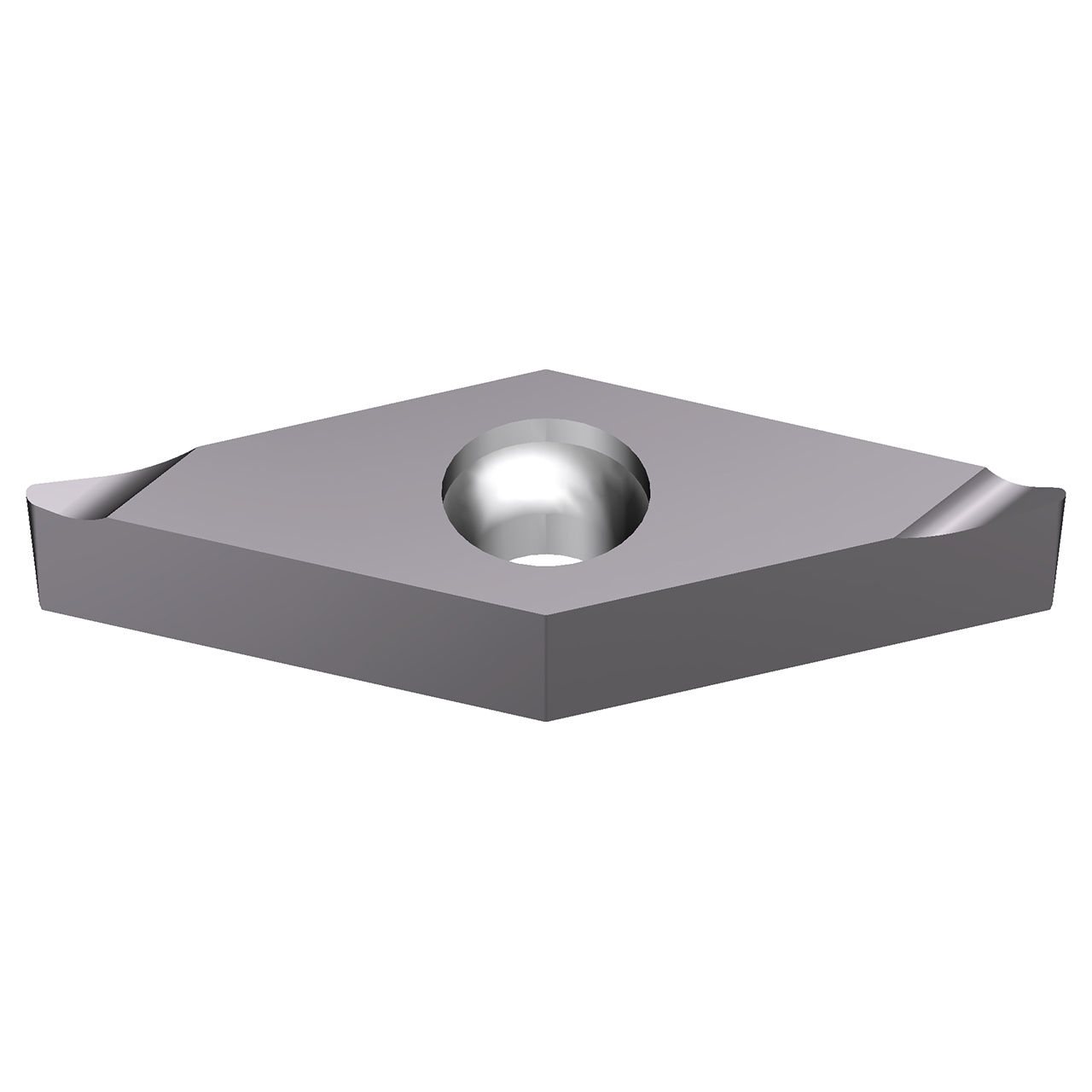

Sumitomo 10R4ALF | VCGT221LFY-AC1030U 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

$12.73 $11.46
(You save $1.27)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
VCGT
Insert Size:
221
Material:
Carbide
Length (Inch):
7/16"
Length (Decimal Inch):
0.4370"
Length (mm):
11.10mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23166689
Weight:
0.10 LBS
Shipping:
Free Shipping
Sumitomo 10R4ALF | VCGT221LFY-AC1030U 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0157" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number10R4ALF
Product Code-ANSIVCGT221LFY-AC1030U
Product Code-ISOVCGT110304L-FY
Manufacturer Grade IdentificationAC1030U
SeriesAC1030U
Cutting Edge Length (Decimal Inch)0.4370"
Cutting Edge Length (mm)11.10mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.1252"
Insert Thickness (mm)3.18mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerLFY
Corner Angle35
Insert StyleVCGT
Secondary Workpiece MaterialSteel, Stainless Steel, Small Machining
Primary Workpiece MaterialSteel, Stainless Steel, Small Machining
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP10, M10
Insert Holding MethodScrew-On
