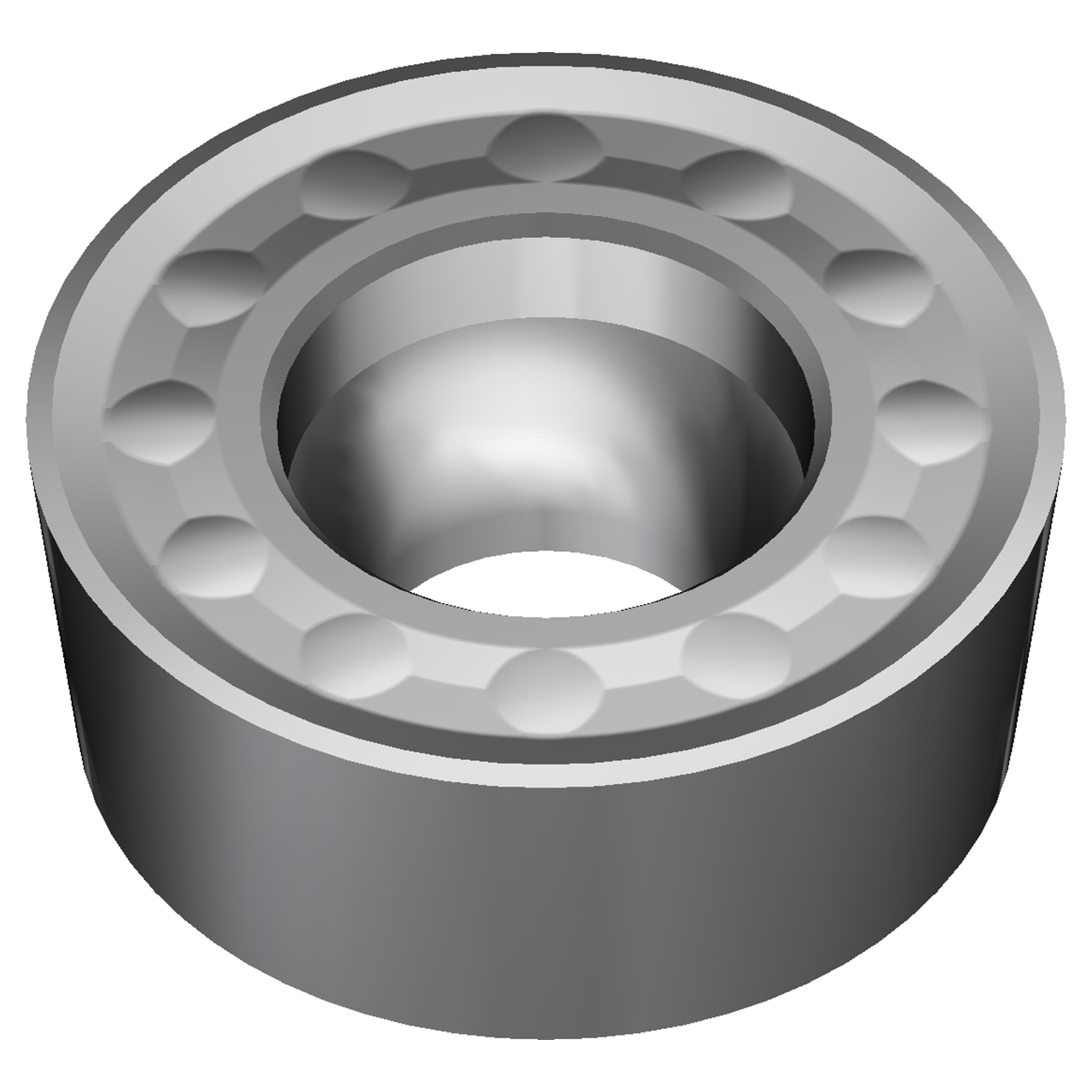

Product Specifications
| EDP Number | 19T4BYS |
| Product Code-ANSI | RCMT160600ERH-AC8015P |
| Product Code-ISO | RCMT1606M0N-RH |
| Manufacturer Grade Identification | AC8015P |
| Series | AC8000P |
| Inscribed Circle Diameter (Decimal Inch) | 0.6299" |
| Inscribed Circle Diameter (mm) | 16.00mm |
| Hole Diameter (mm) | 5.00mm |
| Insert Thickness (Decimal Inch) | 0.2500" |
| Insert Thickness (mm) | 6.35mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | ERH |
| Insert Style | RCMT |
| Primary Workpiece Material | Steel |
| Coating | Absotech |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | P15, P20 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
RCMT
Insert Size:
160600
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6299"
Inscribed Circle (mm):
16.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Manufacturer's Grade:
AC8015P
interval quantity:
10
Ships:
From California in 1-2 Days
