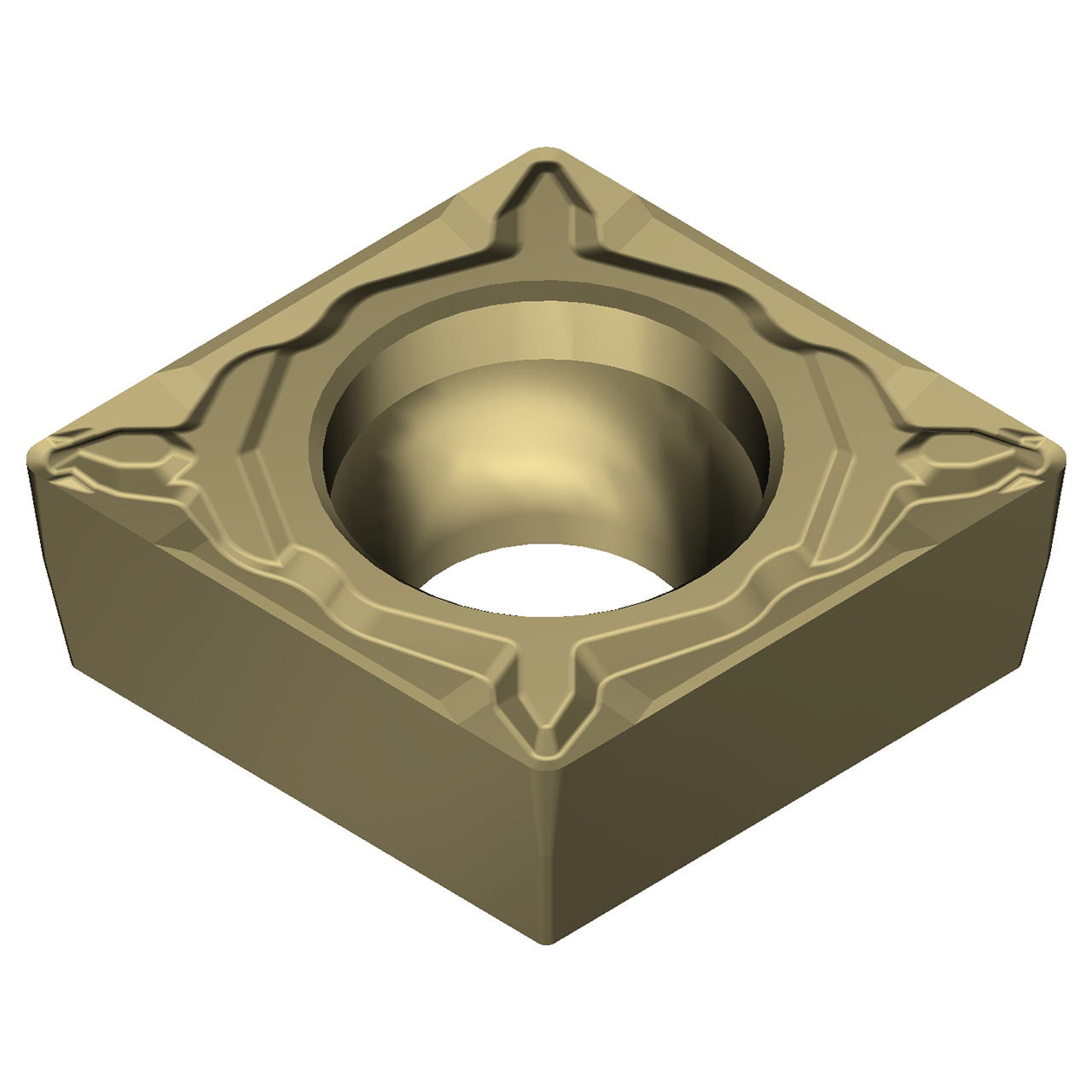

Sumitomo 19W1BVM | CCMT21.50.5ELU-AC8020P 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

$7.76 $6.98
(You save $0.78)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CCMT
Insert Size:
21.50.5
Material:
Carbide
Length (Inch):
1/4"
Length (Decimal Inch):
0.2520"
Length (mm):
6.40mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC8020P
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23182616
Weight:
0.10 LBS
Shipping:
Free Shipping
Sumitomo 19W1BVM | CCMT21.50.5ELU-AC8020P 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number19W1BVM
Product Code-ANSICCMT21.50.5ELU-AC8020P
Product Code-ISOCCMT060202N-LU
Manufacturer Grade IdentificationAC8020P
SeriesAC8000P
Cutting Edge Length (Decimal Inch)0.2520"
Cutting Edge Length (mm)6.40mm
Nose Radius (Decimal Inch)0.0079"
Nose Radius (mm)0.20mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.0937"
Insert Thickness (mm)2.38mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassM
Chip BreakerELU
Corner Angle80
Insert StyleCCMT
Secondary Workpiece MaterialSteel
Primary Workpiece MaterialSteel
CoatingAbsotech
Coating ProcessCVD
Standard Designation of the Grade, Main ApplicationP20
Insert Holding MethodScrew-On
