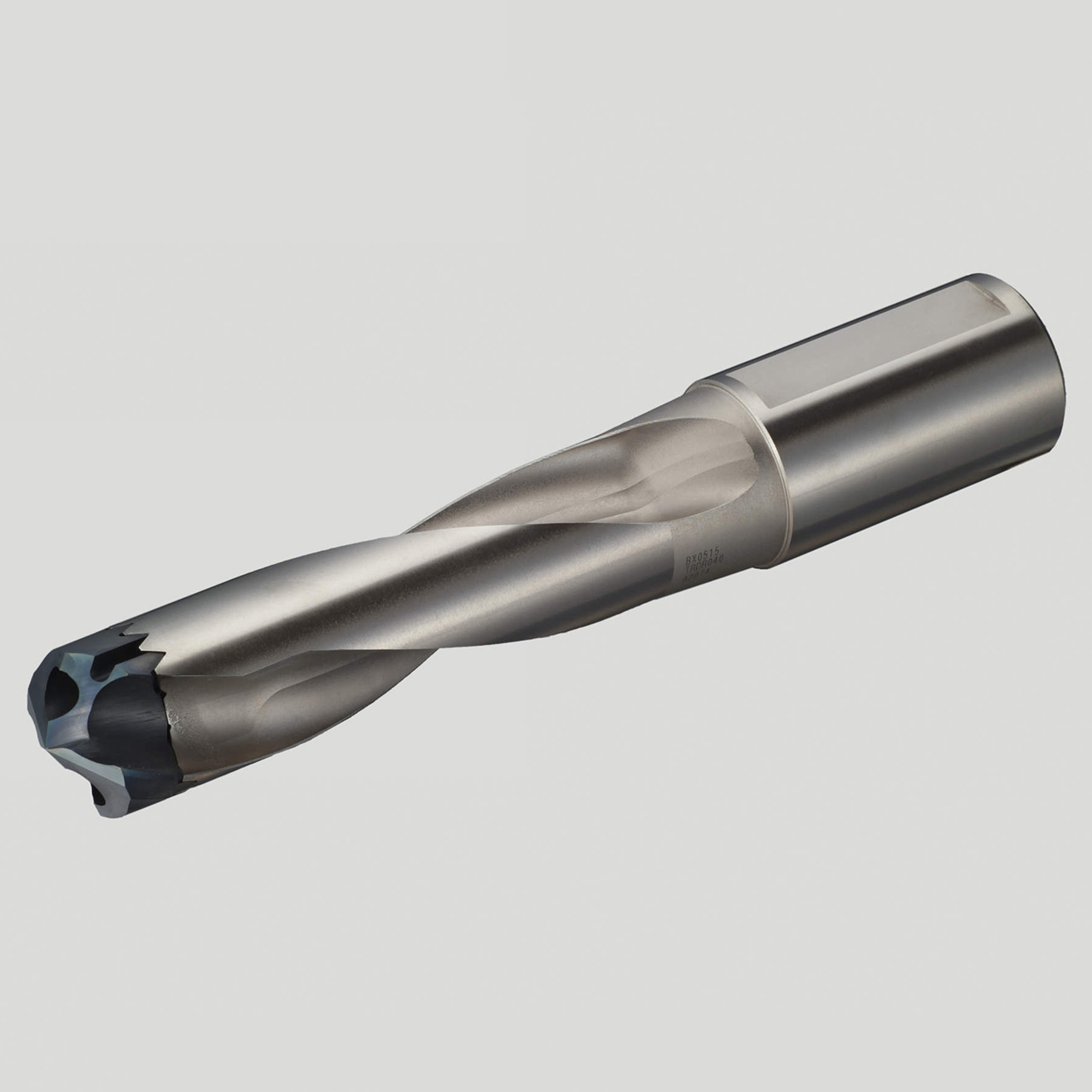

Product Specifications
| EDP Number | 5L00076 |
| Product Code-Sumitomo | SMDH350D |
| Maximum Drill Depth (mm) | 291.00mm |
| Maximum Drill Diameter (mm) | 35.00mm |
| Minimum Drill Diameter (mm) | 33.51mm |
| Shank Diameter (mm) | 40.00mm |
| Shank Length (mm) | 70.00mm |
| Overall Length (mm) | 401.40mm |
| Series | SMD Replaceable Tip Drills |
| Hand | Right Hand |
| Coolant Through | Coolant Through |
| Shank Type | Flatted |
| Tool Material | Steel |
| Number of Tips | 1 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Series:
SMD Replaceable Tip Drills
Minimum Drill Diameter (Inch):
1-5/16"
Minimum Drill Diameter (Decimal Inch):
1.3193"
Minimum Drill Diameter (mm):
33.51mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3780"
Maximum Drill Diameter (mm):
35.00mm
Maximum Drill Depth (Inch):
11-15/32"
Maximum Drill Depth (Decimal Inch):
11.4567"
Maximum Drill Depth (mm):
291.00mm
Shank Diameter (Inch):
1-9/16"
Shank Diameter (Decimal Inch):
1.5748"
Shank Diameter (mm):
40.00mm
Through Coolant:
Coolant Through
interval quantity:
1
Ships:
From California in 1-2 Days
