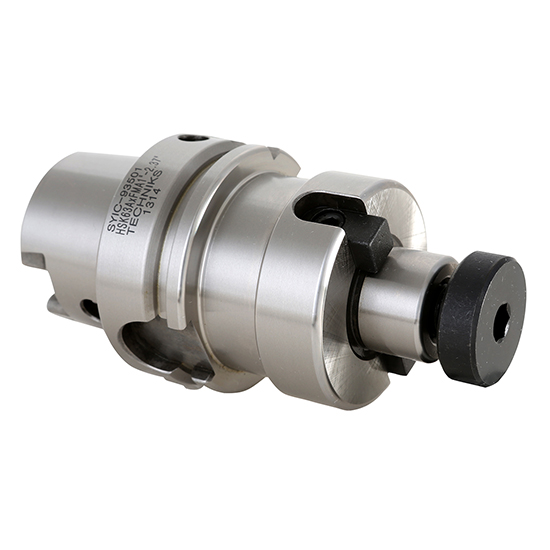

Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Product Specifications
| UNSPSC Code | 27112809 |
| Overall Diameter (in) | 2.48 |
| Overall Diameter (mm) | 63 |
| Body Width (in) | 2.75 |
| Body Width (mm) | 69.9 |
| Taper Type | HSK63A |
| Material | 8620 Steel |
| Type | Face Mill Arbor |
| Style | Single Ended |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 1.25 |
| Hub Diameter (mm) | 31.75 |
| Gage Length (in) | 4 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (in) | 4 |
| Gage Length-Face Contact (mm) | 101.6 |
| Pilot Length (in) | 0.687 |
| Pilot Length (mm) | 17.4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Techniks
Taper Size:
HSK63A
Arbor Size (Decimal Inch):
1.2500"
Arbor Size (mm):
31.75mm
Pilot Diameter (Decimal Inch):
0.6870"
Pilot Diameter (mm):
17.40mm
Projection (Decimal Inch):
4"
Projection (mm):
101.60mm
Ships:
From Partner Facility
