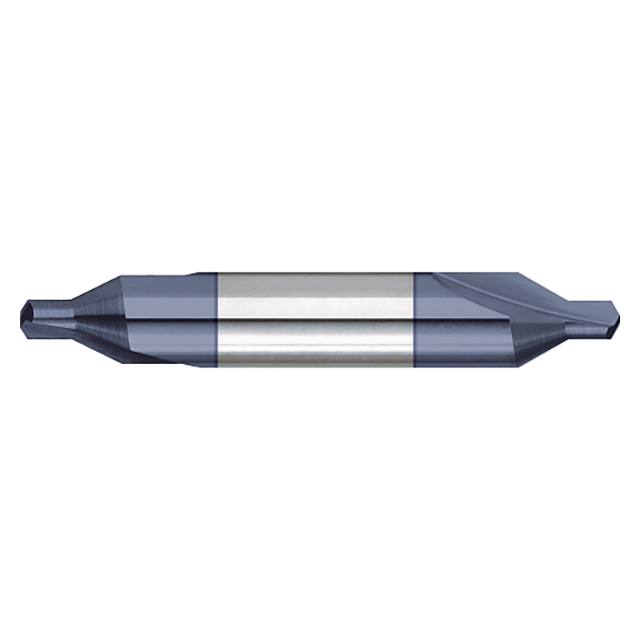

Ground from high speed steel, this offering of Titan USA Combined Drill & Countersinks feature cutting tools that are double-ended, include a 60 Degree included angle, and are AlTiN coated for increased wear and heat resistance.
Features:
- 60 Degree included angle
- Double-ended
- AlTiN coating offers increased wear and heat resistance
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CS35008 |
| Drill Diameter (Inch) | 0.3125" (5/16) |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Included Angle (Degree) | 60 Degree |
| Drill Length (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Size | #8 |
| Substrate | High Speed Steel |
| Coating | ALTIN |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Inch):
5/16"
Drill Point Diameter (Decimal Inch):
0.3125"
Drill Point Diameter (mm):
7.94mm
Body Diameter (Inch):
3/4"
Body Diameter (Decimal Inch):
0.7500"
Body Diameter (mm):
19.05mm
Trade Size:
#8
Included Angle:
60 Degree
Material:
High Speed Steel
Finish/Coating:
AlTiN
interval quantity:
1
