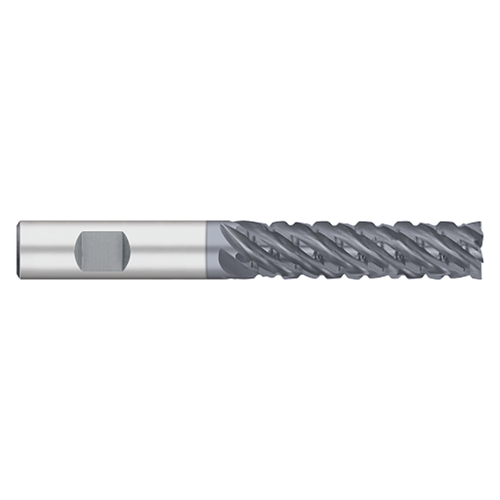

This 5 flute, variable index square profile VI-PRO product offering features Titan USA end mills with chipbreaker geometry for enhanced chip evacuation, minimized chatter, and reduced tool pressure.
Features:
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
- Offered in regular, long, and extra long length styles
- Delivers efficient, chatter-free machining in roughing, profiling, and finishing applications
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases wear and high heat resistance
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC13289 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 2.0000" (2) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 5 |
| Substrate | Carbide |
| Coating | AlCrO-MAX |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Cutter Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.80mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
38 Degree
Number of Flutes:
5
Finish/Coating:
AlCrO-MAX
Material:
carbide
interval quantity:
1
