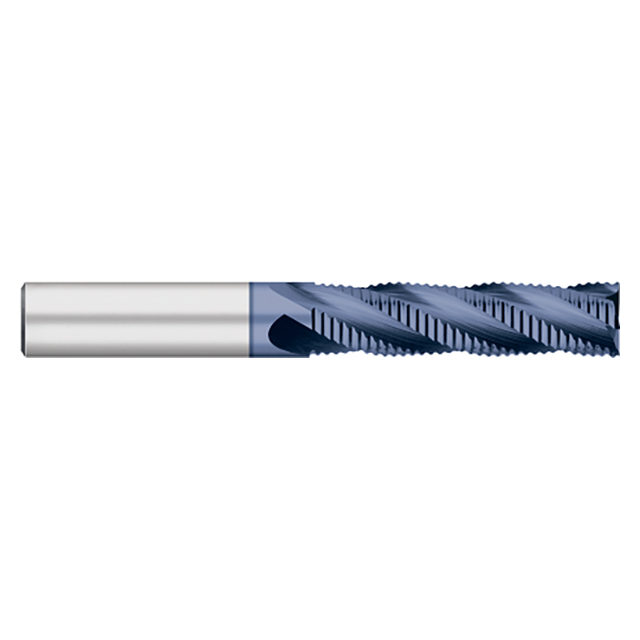

The fine pitch featured in this selection of Titan USA's solid carbide, 4 flute, square profile Rougher End Mills, maximizes material removal rates (MRR) and minimizes vibration and chatter.
Features:
- Fine pitch for maximized material removal rates (MRR) and minimized vibration or chatter
- 4 flutes
- AlTiN coating offers increased wear and heat resistance
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC29649 |
| Cutting Diameter (Inch) | 0.7500" (3/4) |
| Shank Diameter | 0.7500" (3/4) |
| Overall Length (Inch) | 5.0000" (5) |
| Length of Cut (Inch) | 2.2500" (2-1/4) |
| Number of Flutes | 4 |
| Coating | ALTIN |
| Substrate | Carbide |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
4
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Material:
Carbide
Finish/Coating:
ALTIN
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
interval quantity:
1
