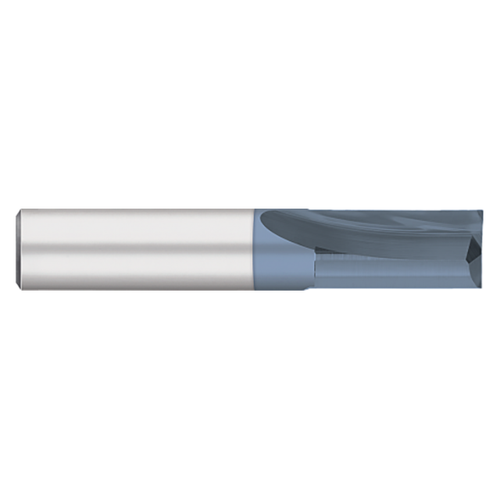

This offering of Titan USA 2 flute Solid Carbide End Mills in a vast selection of cutter diameters.
Features:
- Solid carbide
- Straight flute design for cutting high Rc materials
- AlTiN coating offers increased wear and heat resistance
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC30717 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 2 |
| Coating | AlTiN |
| Substrate | Carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Cutter Diameter (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Material:
Carbide
interval quantity:
1
