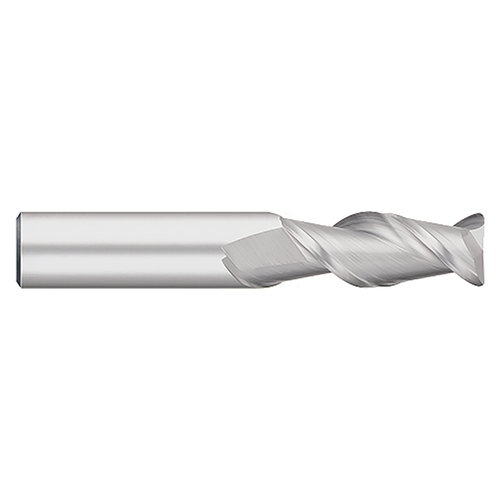

These general purpose end mills are ground from solid carbide in the USA, and feature 3 flutes, a corner radius profile, and a 45 Degree helix, making it an excellent choice for the machining of stainless steels and similar alloys.
Features:
- Engineered to slot and profile at increased speed and feed rates
- Optimized shearing action for excellent part finish
- Proven performance in stainless steels and similar alloys
- Corner radius for increased edge strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC40716 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Corner Radius (Inch) | 0.0200" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Corner Radius & Corner Chamfer End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
