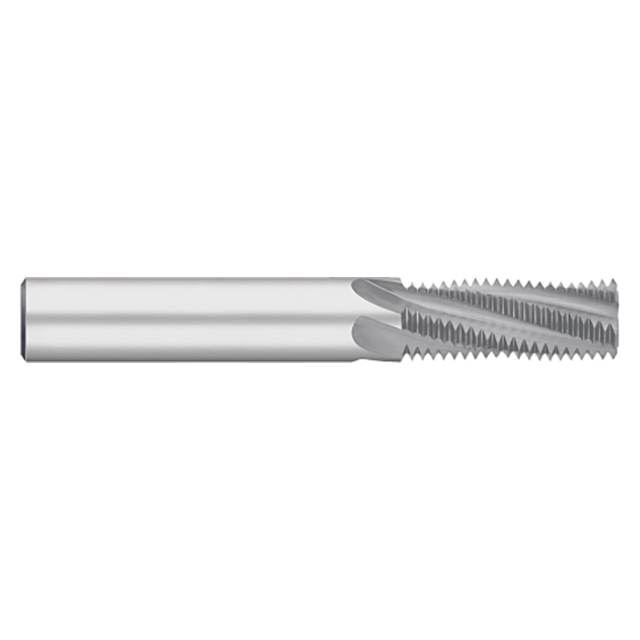

Optimized to cut internal and external National Pipe Taper for Fuels (N.P.T.F.) Threads, this offering of Titan USA tools mills right hand and left hand threads.
Features:
- Cuts internal and external National Pipe Taper for Fuels (N.P.T.F.) threads
- Mills right hand and left hand threads
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC84305 |
| Cutter Diameter (Inch) | 0.3700" |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Thread Size (Inch) | 1/4"-18 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
