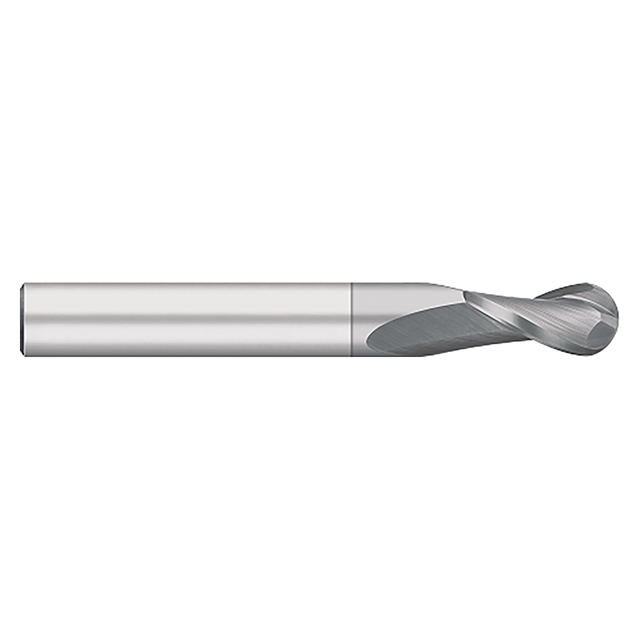

This general purpose Titan USA End Mill features a ball profile, and a 30 Degree helix.
Features:
- 2 flutes
- TiCN coating adds enhanced performance when AlTiN cannot be used
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC96064 |
| Cutter Diameter (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 1.0000" (1) |
| Length of Cut (Inch) | 2.2500" (2-1/4) |
| Overall Length (Inch) | 5.0000" (5) |
| Number of Flutes | 2 |
| Coating | TiCN |
| Substrate | Carbide |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1"
Cutter Diameter (Decimal Inch):
1.0000"
Cutter Diameter (mm):
25.40mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Helix Angle:
30 Degree
Number of Flutes:
2
Finish/Coating:
TiCN
Material:
carbide
