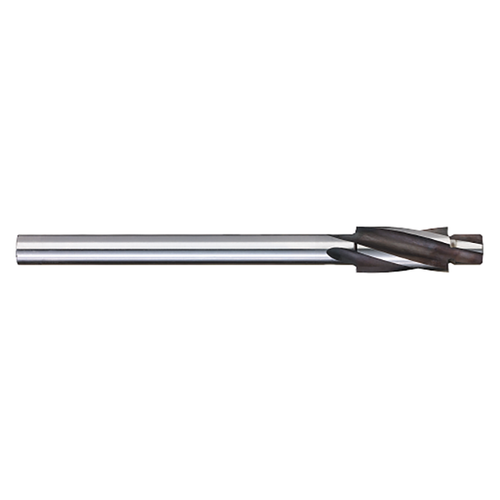

Titan USA's fully stocked offering of capscrew style reamers are precision manufactured in the USA from high speed steel, and feature a unique style that allows capscrews to sit flush with the surface of a part.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Capscrew counterbore style
- Unique style allowing capscrews to sit flush with the surface of a part
- Built in pilot to maintain alignment in existing hole
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97502 |
| Cutter Diameter (Inch) | 0.2370" |
| Flute Length (Inch) | 0.6250" (5/8) |
| End Length (Inch) | 0.1563" (5/32) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 4.1250" (4-1/8) |
| Number of Flutes | 4 |
| Size | 5 |
| Pilot Diameter (Inch) | 0.1560" (5/32) |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Solid Pilot Counterbore |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Counterbore Diameter (Inch):
9/38"
Counterbore Diameter (Decimal Inch):
0.2370"
Counterbore Diameter (mm):
6.02mm
Fastener Diameter Compatibility (Inch):
5"
Fastener Diameter Compatibility (Decimal Inch):
5.0000"
Fastener Diameter Compatibility (mm):
127.00mm
Material:
High Speed Steel
Finish/Coating:
Uncoated
Number of Flutes:
4
