Features:
- Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
- Slightly longer chamfer distributes cutting over greater number of teeth for increased production
- Can be used for plug or bottoming applications
- 52 Degree helix
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT76107 |
| Across Flat (Inch) | 0.1100" |
| Length of Cut (Inch) | 0.5625" (9/16) |
| End Length (Inch) | 0.1875" (3/16) |
| Shank Diameter (Inch) | 0.1410" |
| Overall Length (Inch) | 1.8750" (1-7/8) |
| Thread Size (Inch) | #4-48 |
| Number of Flutes | 2 |
| Limit | H2 |
| Type | Semi Bottom |
| Substrate | High Speed Steel |
| Coating | Uncoated |

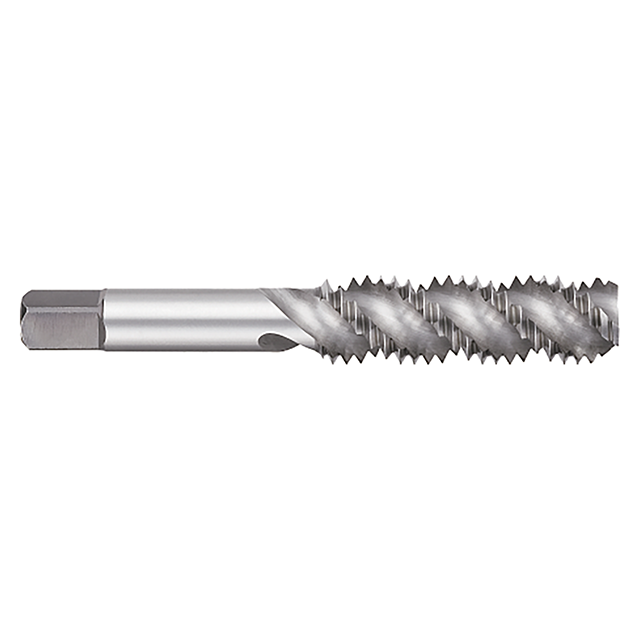

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Overall Length (Inch):
1-7/8"
Overall Length (Decimal Inch):
1.8750"
Overall Length (mm):
47.63mm
Helix Angle:
52 Degree
Number of Flutes:
2
Finish/Coating:
Uncoated
Material:
High Speed Steel
