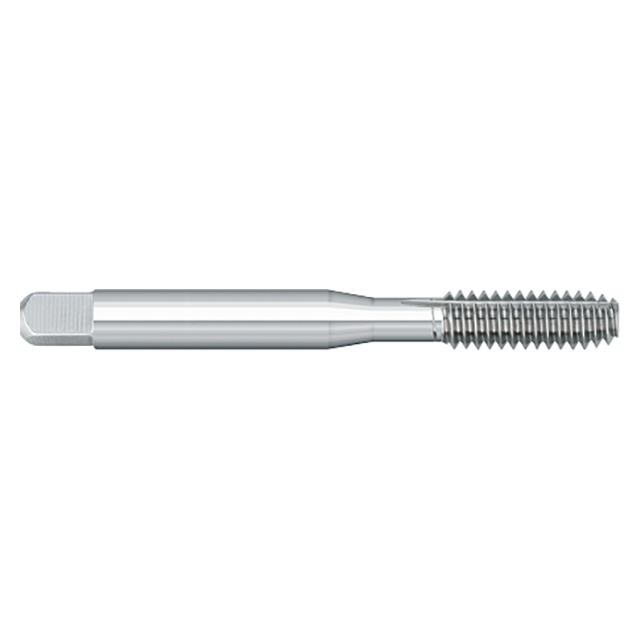

Titan USA TT82879 | 1/4"-28 Thread x 1.0000" (1) Thread Length x 0.2550" Shank x 2.5000" (2-1/2) OAL H6 Limit Uncoated High Speed Steel Plug Thread Forming Tap

$12.83
interval quantity:
1
SKU:
17981314
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

Features:

  • Thread forming taps have no flutes or cutting edges and provide chipless tapping
  • Lube grooves for lubrication and venting in blind holes
  • Taps are on blanks that meet ANSI specifications
  • Plug - 4.0 Thread Chamfer for through hole tapping
  • Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
  • TiN coating provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT82879
Shank Diameter (Inch)0.2550"
Thread Length (Inch)1.0000" (1)
Overall Length (Inch)2.5000" (2-1/2)
Thread Size (Inch)1/4"-28
Across Flat (Inch)0.1910"
End Length (Inch)0.3125" (5/16)
Lube Grooves2
LimitH6
CoatingUncoated
SubstrateHigh Speed Steel
TypePlug
Product TypeThread Forming Tap
