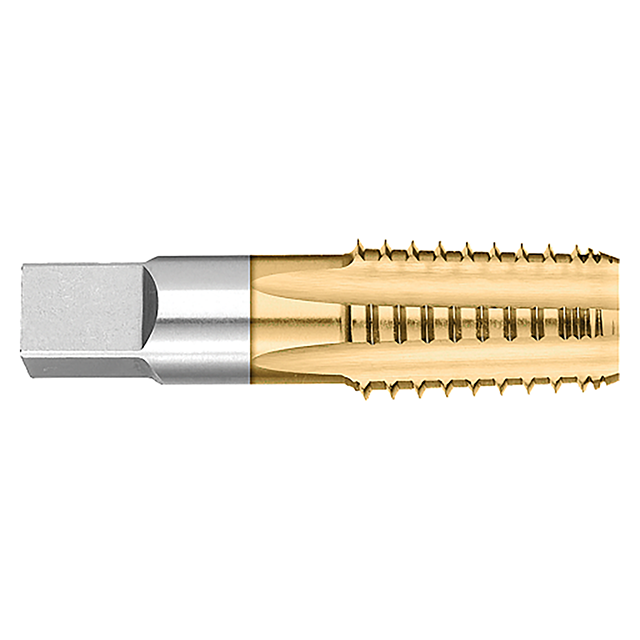

Titan USA TT93606TIN | 1/4"-18 Thread x 1.0625" (1-1/16) Thread Length x 0.5625" (9/16) Shank x 2.4375" (2-7/16) OAL TiN Coated High Speed Steel Interrupted Thread Pipe Tap

$43.02
Brand:
Titan USA
Thread Size (Inch):
1-1/16"
Thread Size (Decimal Inch):
1.0625"
Thread Size (mm):
26.99mm
Thread Standard:
NPT-Interrupted
Material:
High Speed Steel
Finish/Coating:
TiN
Number of Flutes:
5
Shank Diameter (Inch):
9/16"
Shank Diameter (Decimal Inch):
0.5625"
Shank Diameter (mm):
14.29mm
interval quantity:
1
SKU:
17982802
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Features:

  • General purpose NPT interrupted pipe tape
  • Interrupted threads reduce friction and allow for better lubrication
  • Taps are on blanks that meet ANSI specifications
  • TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT93606TIN
Shank Diameter (Inch)0.5625" (9/16)
Length of Cut (Inch)1.0625" (1-1/16)
Overall Length (Inch)2.4375" (2-7/16)
Across Flat (Inch)0.4210"
End Length (Inch)0.4375" (7/16)
Thread Size (Inch)1/4"-18
CoatingTiN
SubstrateHigh Speed Steel
Thread TypeNPT-Interrupted
Number of Flutes5
Product TypeInterrupted Thread Pipe Tap
