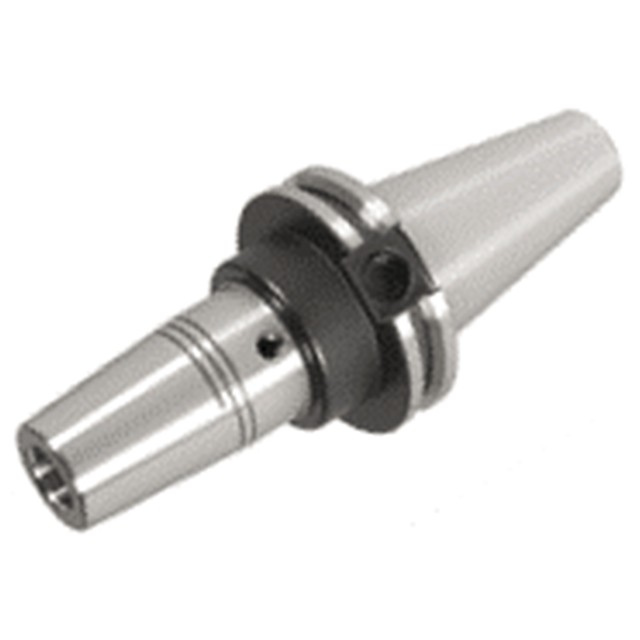

Thermal shrinking holder with integral caterpillar tapered shank, for carbide, HSS and steel shank with h6 tolerance.
Product Specifications
| Manufacturer Part Number | 4503964 |
| Body Diameter (Inch) | 1.299" |
| Body Diameter-2 (Inch) | 1.654" |
| Body Length (Inch) | 3-1/4" |
| Body Length-2 (Inch) | 2.62" |
| Connection Diameter Workpiece Side (Inch) | 3/4" |
| Overall Length (Inch) | 4" |
| Shank Size | 40 |
| Shank Type | Round |
| Thread Designation Inside | M16 |
| Body Material | Steel |
| Tool Type | Caterpillar |
| Application | Tapered Shape Interface |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Nose Diameter (Inch):
1-19/64"
Nose Diameter (mm):
32.99mm
Nose Diameter (Decimal Inch):
1.2990"
Hole Diameter (Inch):
3/4"
Hole Diameter (mm):
19.05mm
Hole Diameter (Decimal Inch):
0.7500"
Material:
Steel
Overall Length (Decimal Inch):
4.0000"
