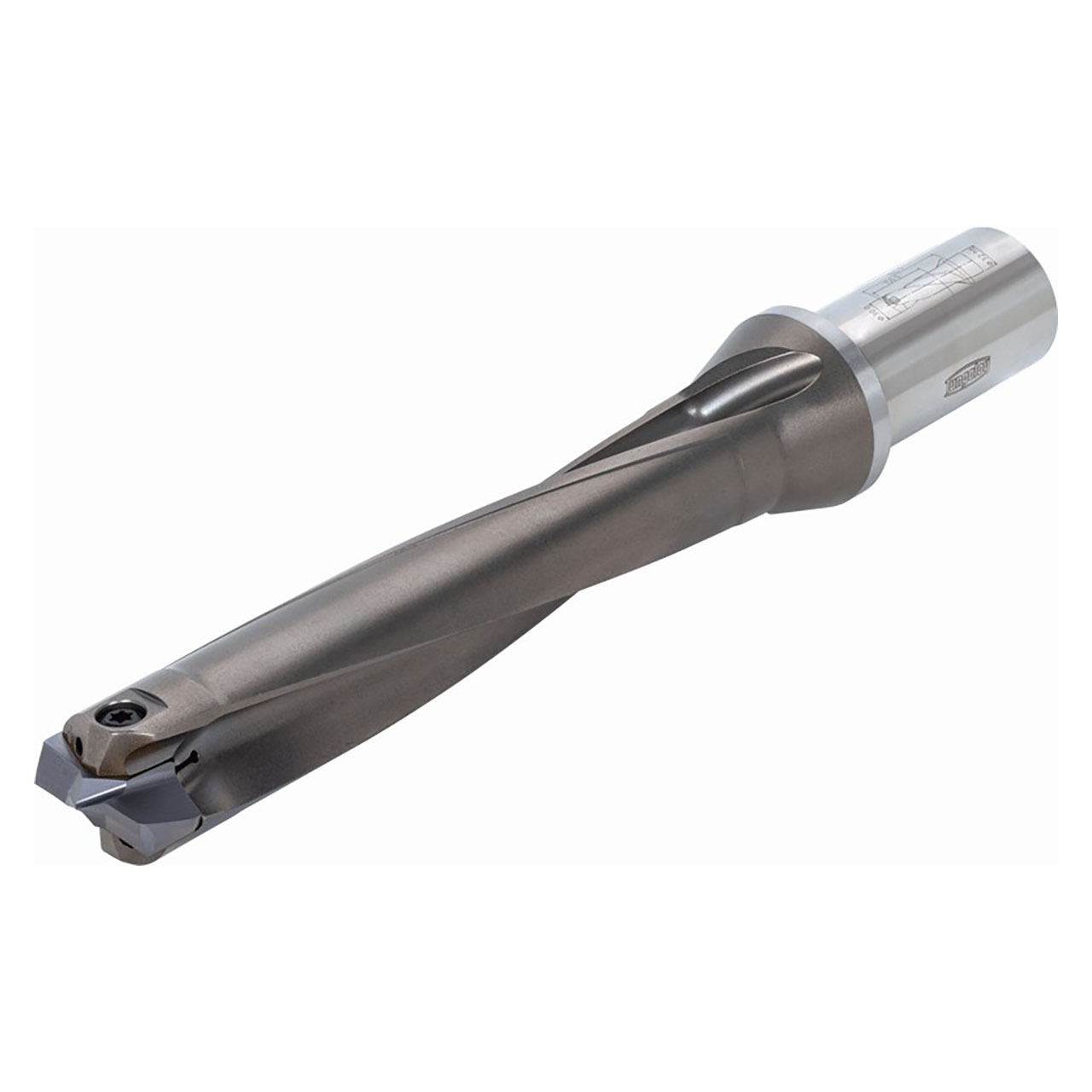

"DrillMeister" exchangeable head drill with cylindrical shank (For external coolant supply).
Product Specifications
| Cutting Diameter Maximum (mm) | 26.9 mm |
| Cutting Diameter Minimum (mm.) | 26 mm |
| Flange Diameter (mm) | 40 mm |
| Connection Diameter Machine Side (mm) | 16 mm |
| Overall Length (mm) | 229.00mm |
| Point Length (mm) | 2.27 mm |
| Shank Length (mm) | 70 mm |
| Usable Length (mm) | 31.5 mm |
| Insert Seat Size Code (SSC) | 15 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
26.90mm
Minimum Cutting Diameter (mm):
26.00mm
Flange Diameter (mm):
40.00mm
Body Material:
Steel
Overall Length (mm):
229.00mm
Point Length (mm):
4.73mm
Shank Length (mm):
60.00mm
Usable Length (mm):
134.00mm
