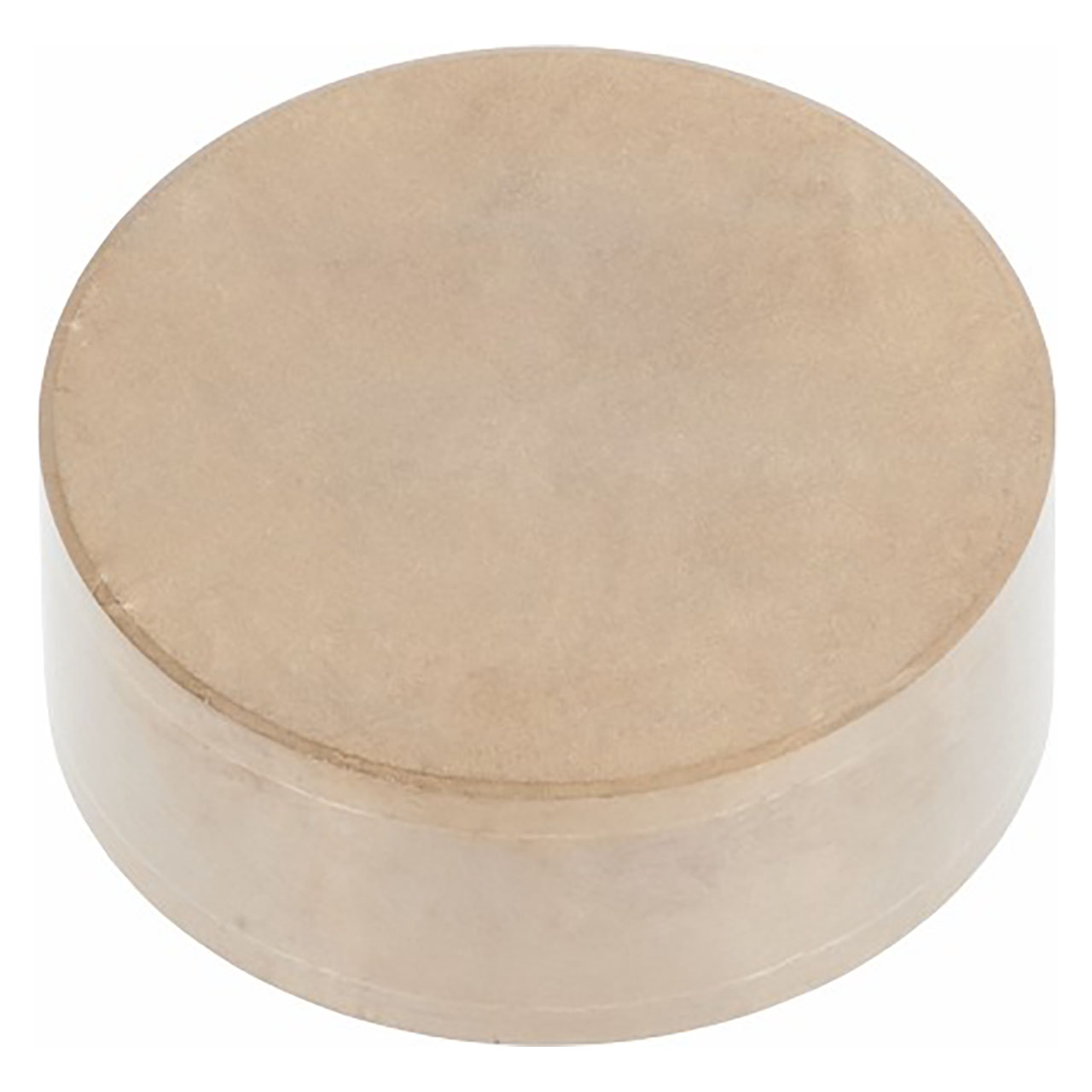

Negative relief angle, G class, round solid CBN insert.
Product Specifications
| # MFG | 6822066 |
| Cutting Edge Length (Inch) | 3/8" |
| Cutting Edge Effective Length (Inch) | 0.188" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0157"/rev |
| Minimum Depth of Cut (Inch) | 0.0019" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Coating | TiN |
| Cutting Edge Material | PCBN |
| Grade | BXC90 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron |
| Chip Breaker Type | FT-CBN |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Neck Diameter (mm):
7.60mm
Corner Radius (Inch):
3/16"
Finish/Coating:
TiN
Body Material:
Carbide
Grade:
BXC90
Cutting Direction:
Neutral
Maximum Depth of Cut (Decimal Inch):
0.1181"
interval quantity:
1
