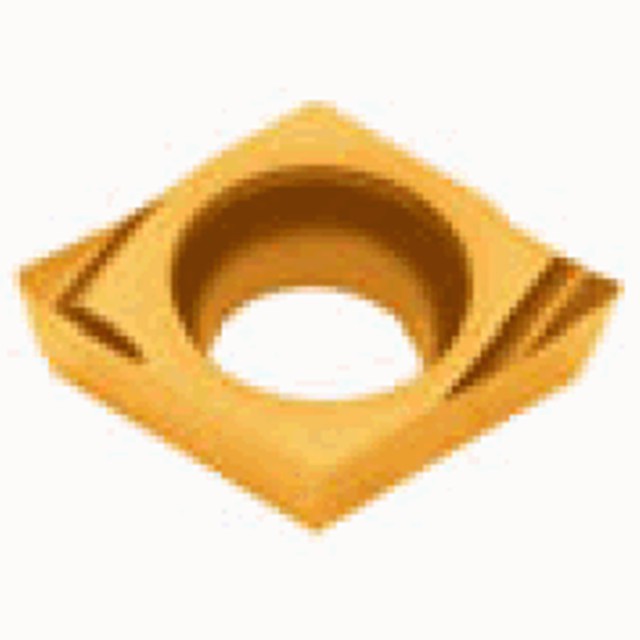

Positive 11 degree relief angle, G class, 75 degree rhombic insert, for finishing.
Product Specifications
| Manufacturer Part Number | 6862157 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.161" |
| Maximum Depth of Cut (Inch) | 0.0394" |
| Fixing Hole Diameter (Inch) | 0.091" |
| Inscribed Circle Diameter (Inch) | 0.156" |
| Insert Thickness (Inch) | 0.063" |
| Maximum Turning Feed (Inch) | 0.0059"/rev |
| Minimum Depth of Cut (Inch) | 0.0079" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | SH730 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Chip Breaker Type | J08 |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1560"
Inscribed Circle (mm):
3.96mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0630"
Thickness (mm):
1.60mm
interval quantity:
10
