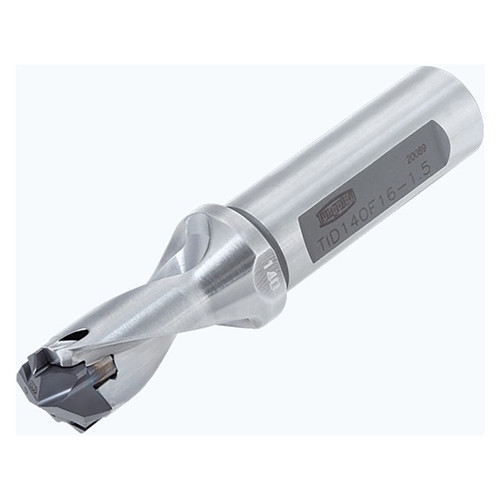

"DrillMeister" exchangeable head drill with cylindrical shank (For external coolant supply).
Product Specifications
| Cutting Diameter Maximum (mm) | 19.9 mm |
| Cutting Diameter Minimum (mm.) | 19 mm |
| Flange Diameter (mm) | 32 mm |
| Connection Diameter Machine Side (mm) | 10 mm |
| Overall Length (mm) | 114.30mm |
| Point Length (mm) | 1.37 mm |
| Shank Length (mm) | 50 mm |
| Usable Length (mm) | 16.5 mm |
| Insert Seat Size Code (SSC) | 9 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.7835"
Minimum Cutting Diameter (Decimal Inch):
0.7480"
Flange Diameter (Decimal Inch):
1.2600"
Body Material:
Steel
Overall Length (Inch):
4-1/2"
Point Length (Decimal Inch):
0.1130"
Shank Length (Decimal Inch):
2.2050"
Usable Length (Decimal Inch):
1.2990"
interval quantity:
1
