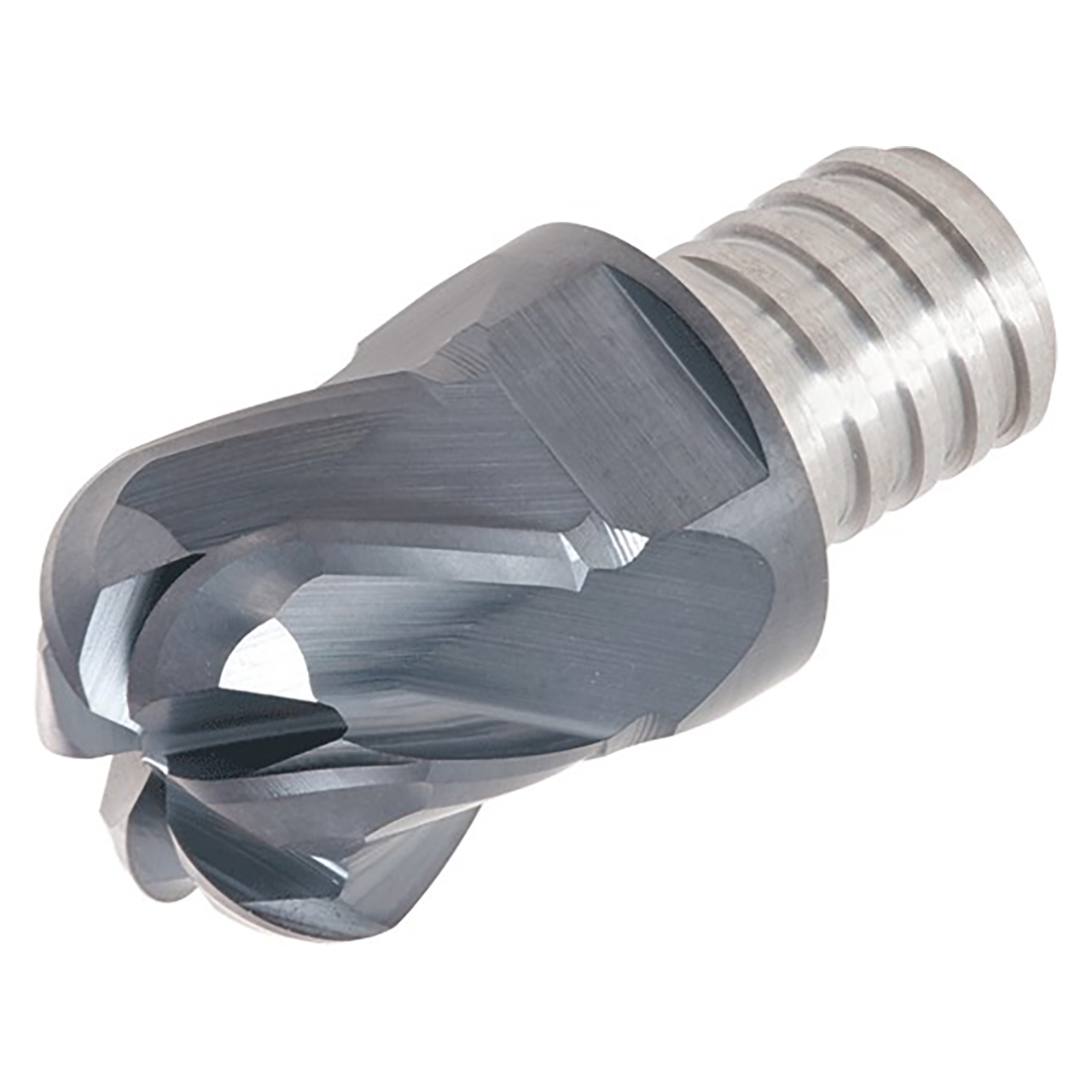

Radius, 6 flutes, semi finishing-finishing, helix cutting edge.
Product Specifications
| Manufacturer Part Number | 6864058 |
| Cutting Diameter Maximum (Inch) | 1/2" |
| Cutting Diameter (Inch) | 1/2" |
| Depth of Cut Maximum (Inch) | 0.27" |
| Functional Length (Inch) | 0.65" |
| Corner Radius (Inch) | 0.062" |
| Maximum Feed per Tooth (fz) | 0.0051"/tooth |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 6 |
| Tool Cutting Edge Angle (Degree) | 97 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Corner Rounding Endmills |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Profile Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.70mm
Number of Flutes:
6
Finish/Coating:
TiAlN
interval quantity:
2
