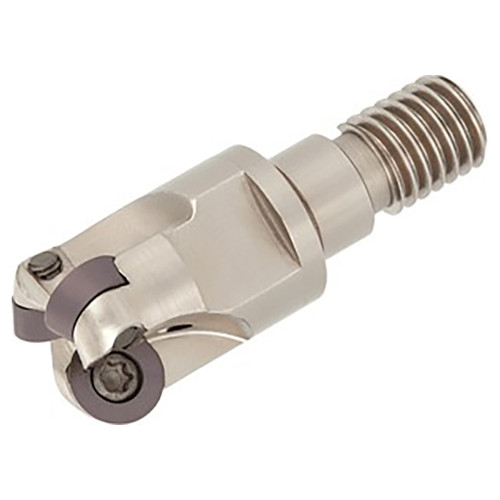

Indexable endmills with TungFlex, carrying button inserts of 3.5mm radius.
Product Specifications
| # MFG | 6995988 |
| Connection Diameter Machine Side (mm) | 28.8mm |
| Connection Retention Knob Thread Size | M16 |
| Cutting Diameter (mm) | 23mm |
| Cutting Item Count | 5 |
| Maximum Cutting Diameter (mm) | 30mm |
| Maximum Depth of Cut (mm) | 3.5mm |
| Functional Length (mm) | 40mm |
| Overall Length (mm) | 63mm |
| Shank Height (mm) | 22mm |
| Body Material | Steel |
| Application | Face Milling, Profile Milling |
| Tool Type | Corner Rounding Endmills |
