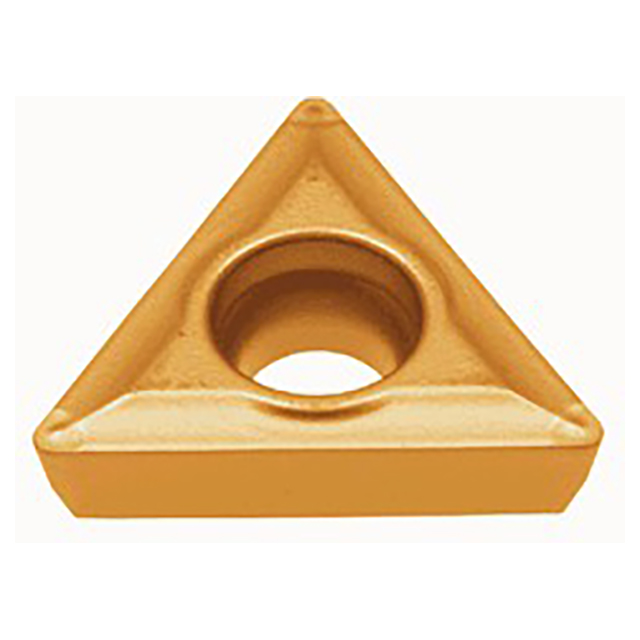

Tungaloy 6998634 | TPMT 2.521-23 NS9530 0.313" Circle Diameter x 1/8" Thickness x 0.016" Radius Cermet Indexable Turning Insert

$9.70 $6.79
(You save $2.91)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/16"
Inscribed Circle (Decimal Inch):
0.3130"
Inscribed Circle (mm):
7.95mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
interval quantity:
10
SKU:
23139832
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, triangular insert, for finishing to medium cutting.


Product Specifications
# MFG6998634
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.543"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.134"
Inscribed Circle Diameter (Inch)0.313"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type23
Major Clearance Angle11 Degree
Body MaterialCarbide
