Product Specifications
Manufacturer Part Number | 903-000-025 |
Body Diameter (Decimal Inch) | 1.125" |
Machine Side Connection Diameter (Decimal Inch) | 0.625" |
Overall Length (Decimal Inch) | 10.000" |
Connection Size Code Workpiece Side | ER20 |
Collet Nut | ER-20MN |
Collet Wrench | ER-20MW |

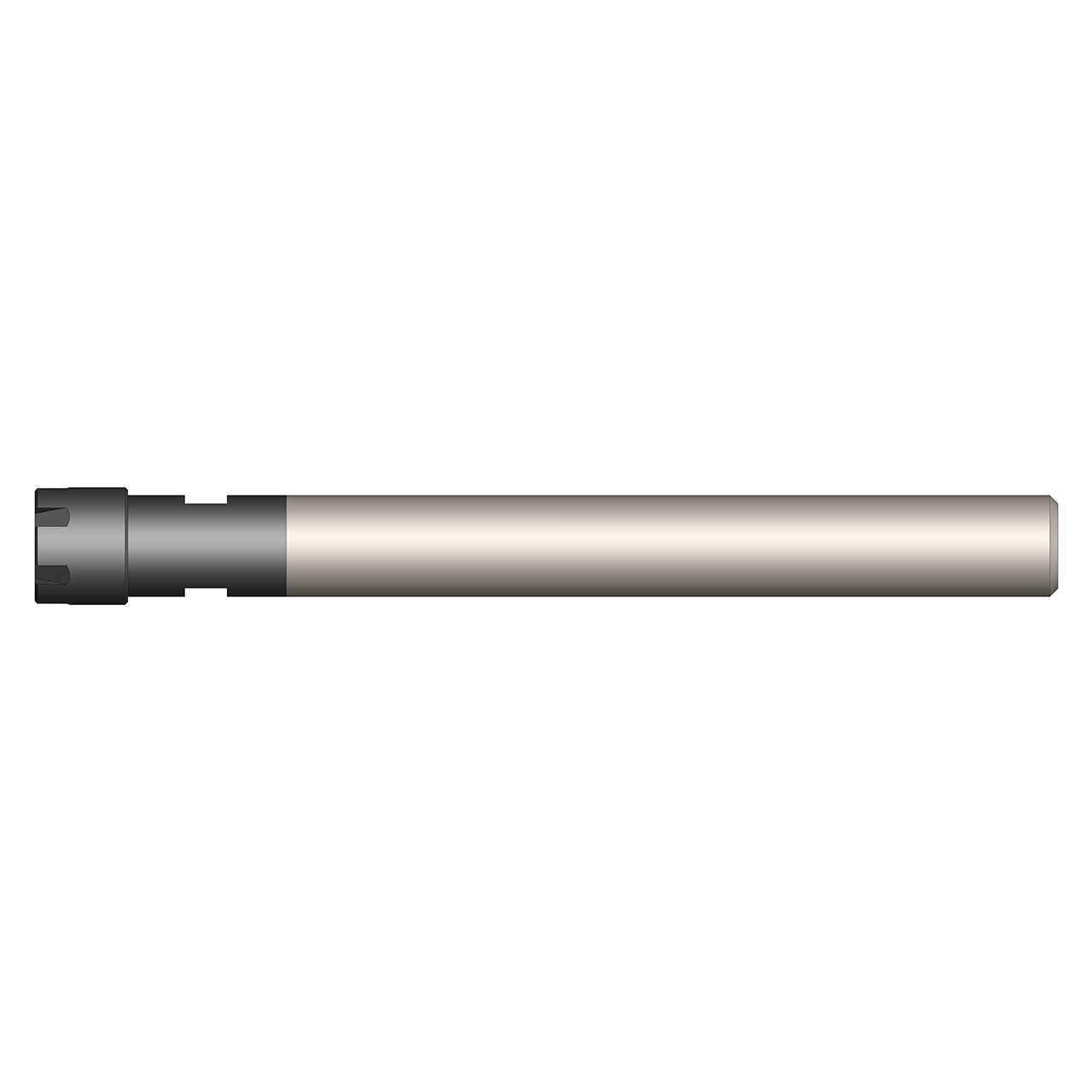

Product Type | Collet Chuck Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Ultra-Dex
Collet Series:
ER20
Body Diameter (Inch):
1-1/8"
Body Diameter (mm):
1.1250"
Body Diameter (Decimal Inch):
28.58mm
Overall Length (Inch):
10"
Overall Length (Decimal Inch):
10.0000"
Overall Length (mm):
254.00mm
interval quantity:
1
