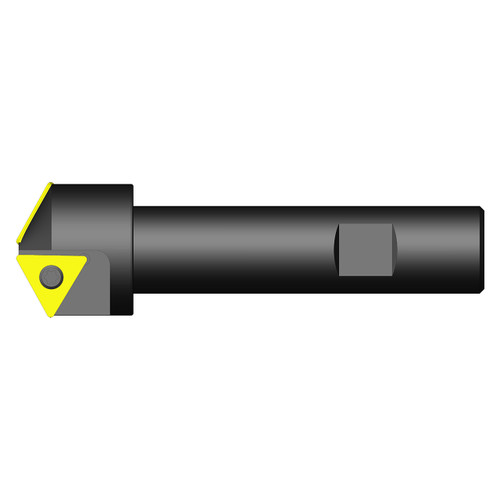

Ultra-Dex 909-000-528 | 1.288" Diameter x 4.000" Functional Length 41 Degree Entering Angle Indexable Chamfer Mill

$152.37
Brand:
Ultra-Dex
Minimum Cutting Diameter (Inch):
9/16"
Minimum Cutting Diameter (Decimal Inch):
0.5620"
Minimum Cutting Diameter (mm):
14.27mm
Maximum Cutting Diameter (Inch):
1-9/32"
Maximum Cutting Diameter (Decimal Inch):
1.2880"
Maximum Cutting Diameter (mm):
32.72mm
interval quantity:
1
SKU:
25336441
Weight:
0.60 LBS
Shipping:
Free Shipping
Ultra-Dex 909-000-528 | 1.288" Diameter x 4.000" Functional Length 41 Degree Entering Angle Indexable Chamfer Mill

Product Specifications
Manufacturer Part Number909-000-528
Maximum Axial Depth of Cut (Decimal Inch)0.418"
Minimum Cutting Diameter (Decimal Inch)0.562"
Maximum Cutting Diameter (Decimal Inch)1.288"
Machine Side Connection Diameter (Decimal Inch)0.750"
Functional Length (Decimal Inch)4.000"
Entering Angle (Degree)41 Degree
InsertTCMT 32.5
Insert ScrewMTS-35
Product TypeIndexable Chamfer Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Ultra-Dex
Minimum Cutting Diameter (Inch):
9/16"
Minimum Cutting Diameter (Decimal Inch):
0.5620"
Minimum Cutting Diameter (mm):
14.27mm
Maximum Cutting Diameter (Inch):
1-9/32"
Maximum Cutting Diameter (Decimal Inch):
1.2880"
Maximum Cutting Diameter (mm):
32.72mm
interval quantity:
1
