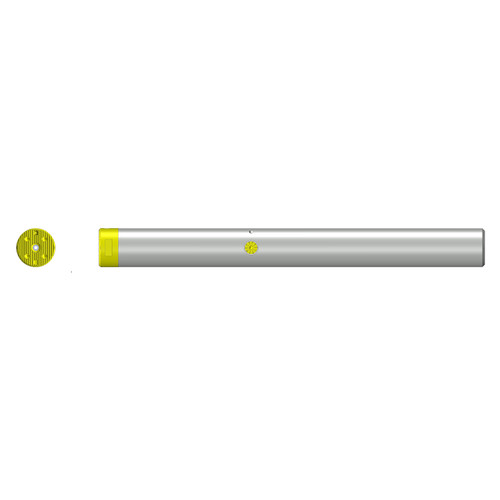

Ultra-Dex 910-000-059 | 1.250" Diameter x 21.000" Functional Length Indexable Boring Bar

$10,135.65
Brand:
Ultra-Dex
Minimum Bore Diameter (Inch):
1-37/64"
Minimum Bore Diameter (Decimal Inch):
1.5750"
Minimum Bore Diameter (mm):
40.01mm
interval quantity:
1
SKU:
10323674
Weight:
19.00 LBS
Shipping:
Free Shipping
Ultra-Dex 910-000-059 | 1.250" Diameter x 21.000" Functional Length Indexable Boring Bar

Product Specifications
Manufacturer Part Number910-000-059
Machine Side Connection Diameter (Decimal Inch)1.250"
Work Side Connection Diameter (Decimal Inch)1.259"
Minimum Bore Diameter (Decimal Inch)1.575"
Functional Length (Decimal Inch)21.000"
Minimum Overhang (Decimal Inch)12.160"
Maximum Overhang (Decimal Inch)17.500"
Product TypeIndexable Boring Bar
