Product Specifications
| EDP Number | 03087HF |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (mm) | 34.93mm |
| LBS (Decimal Inch) | 2.7188" |
| LBS (Inch) | 2-23/32" |
| LBS (mm) | 69.06mm |
| Overall Length (Decimal Inch) | 4.6250" |
| Overall Length (Inch) | 4-5/8" |
| Overall Length (mm) | 117.48mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1033 |
| End Type | Single End |
| Length Type | Extended |

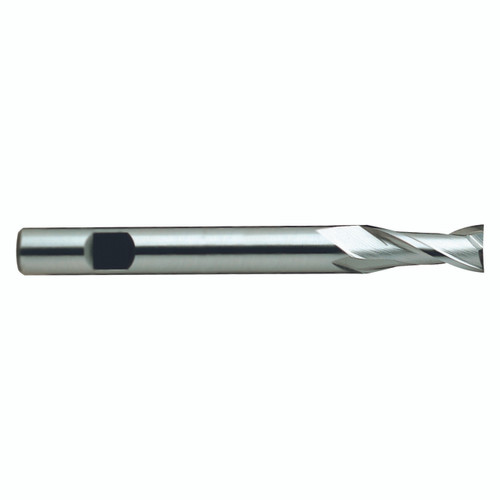

| Product Type | Square End Mill |
