Product Specifications

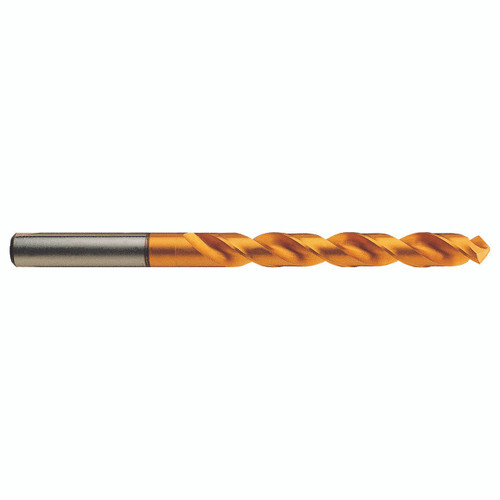

| Manufacturer Part Number | 0771JCN |
| Diameter (Inch) | 10/33" |
| Diameter (Decimal Inch) | 0.3031" |
| Diameter (mm) | 7.70mm |
| Shank Diameter (Inch) | 10/33" |
| Shank Diameter (Decimal Inch) | 0.3031" |
| Shank Diameter (mm) | 7.70mm |
| Flute Length (Inch) | 1-37/81" |
| Flute Length (Decimal Inch) | 1.4567" |
| Flute Length (mm) | 37.00mm |
| Overall Length (Inch) | 3-7/37" |
| Overall Length (Decimal Inch) | 3.1890" |
| Overall Length (mm) | 81.00mm |
| Point Length (Decimal Inch) | 0.0875" |
| Point Length (mm) | 2.22mm |
| Number of Flutes | 2 |
| Series | DJ543 |
| Point Angle | 120 Degree |
| Helix Angle | 38 Degree |
| Length/Diameter | Stub |
| Shank Tolerance | h7 |
| Coolant Through | No |
| Coating | TiN |
| Material | HSS EX |
| Hole Tolerance | h8 |
| Application | P,M |
| Cutting Direction | Right |
| Blank Standard | DIN6535-HA |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
10/33"
Drill Bit Size (Decimal Inch):
0.3031"
Drill Bit Size (mm):
7.70mm
Flute Length (Inch):
1-37/81"
Flute Length (Decimal Inch):
1.4567"
Flute Length (mm):
37.00mm
Overall Length (Inch):
3-7/37"
Overall Length (Decimal Inch):
3.1890"
Overall Length (mm):
81.00mm
Material:
HSS EX
Finish/Coating:
TiN
Cutting Direction:
Right
Coolant Through:
No
