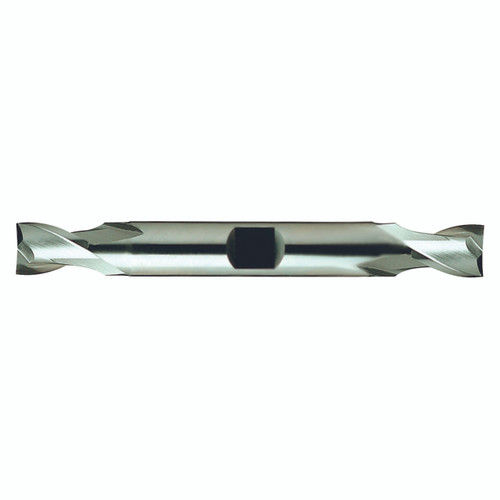

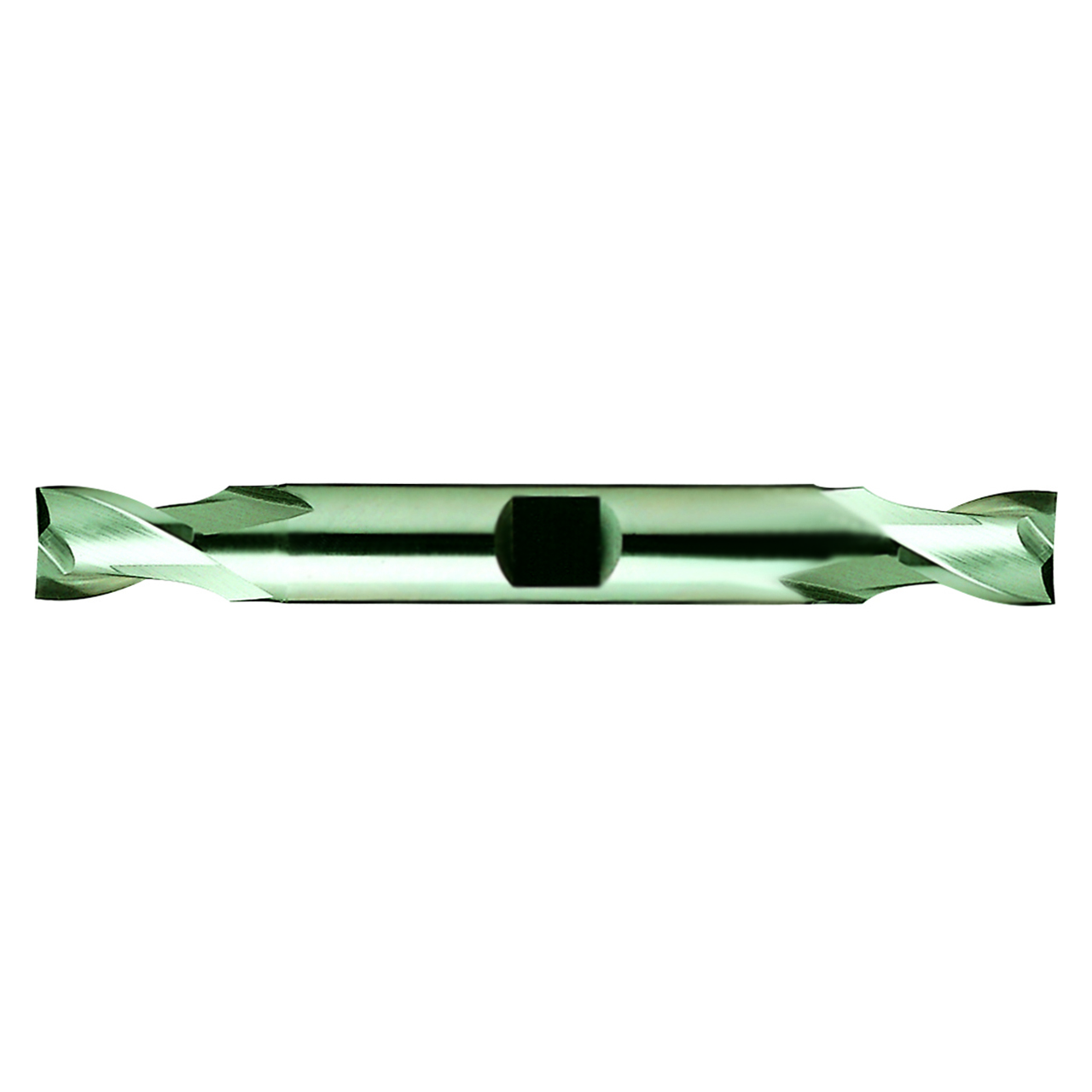

Product Specifications
| EDP Number | 11344CC |
| Diameter (Decimal Inch) | 0.6563" |
| Diameter (Inch) | 21/32" |
| Diameter (mm) | 16.67mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.3125" |
| Length of Cut (Inch) | 1-5/16" |
| Length of Cut (mm) | 33.34mm |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (Inch) | 5" |
| Overall Length (mm) | 127.00mm |
| Series | E2050 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Coating | TiCN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
