Product Specifications
| Manufacturer Part Number | 93487 |
| Cutting Diameter (Inch) | 3/32" |
| Cutting Diameter (Decimal Inch) | 0.093" |
| Cutting Diameter (mm) | 2.38mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.093" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 3/32" |
| Length of Cut (Decimal Inch) | 0.093" |
| Length of Cut (mm) | 2.38mm |
| Overal Length (Inch) | 2" |
| Overal Length (Decimal Inch) | 2.000" |
| Overal Length (mm) | 50.80mm |
| Ball Nose Radius (Inch) | 3/64" |
| Ball Nose Radius (Decimal Inch) | 0.046" |
| Neck Diameter (Inch) | 1/11" |
| Shank Style | Plain |
| Helix Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |

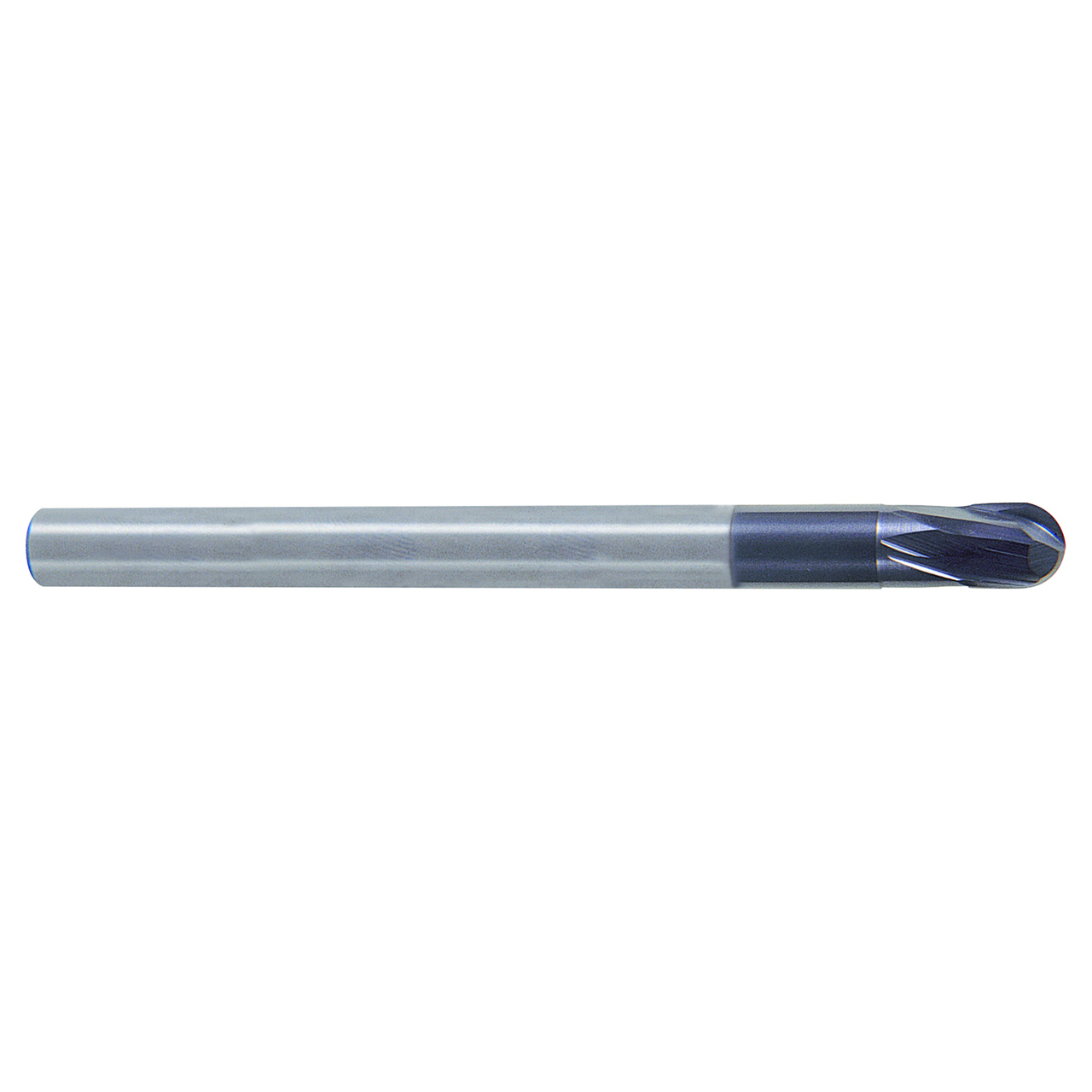

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
3/32"
Cutting Diameter (Decimal Inch):
0.0930"
Cutting Diameter (mm):
2.38mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.0930"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
3/32"
Length of Cut (Decimal Inch):
0.0930"
Length of Cut (mm):
2.38mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
interval quantity:
1
