Product Specifications
| Manufacturer Part Number | 93530 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Cutting Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.500" |
| Length of Cut (mm) | 12.70mm |
| Overal Length (Inch) | 4-3/8" |
| Overal Length (Decimal Inch) | 4.375" |
| Overal Length (mm) | 111.13mm |
| Ball Nose Radius (Inch) | 1/8" |
| Ball Nose Radius (Decimal Inch) | 0.125" |
| Neck Diameter (Inch) | 13/40" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |

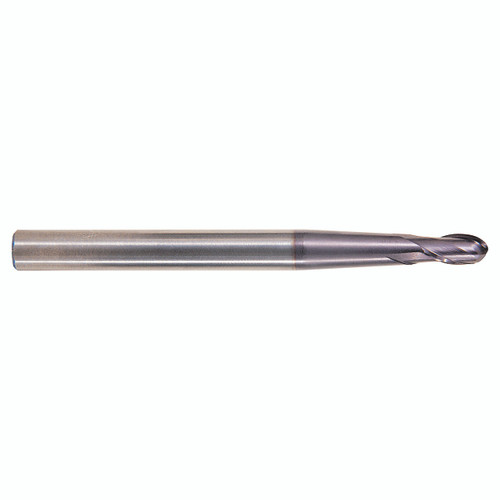

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Overall Length (Inch):
4-3/8"
Overall Length (Decimal Inch):
4.3750"
Overall Length (mm):
111.13mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
interval quantity:
1
