Product Specifications
| Diameter (Decimal Inch) | BF605 |
| Diameter (Decimal Inch) | 0.5625" |
| Diameter (mm) | 14.29mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.00mm |
| Square Length (Decimal Inch) | 0.5000" |
| Square Length (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.4290" |
| Shank Diameter (mm) | 10.90mm |
| Square Size (Decimal Inch) | 0.3220" |
| Square Size (mm) | 8.18mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 10.59mm |
| Number of Flutes | 3 |
| Size & Pitch | 9/16-12" |
| Tap Type | SPFL |
| Size | 9/16" |
| Pitch | 12 TPI |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Steam Oxide |
| Material | Super HSS |
| Blank Standard | DIN/ANSI |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 2.0670" |
| Useable Length (mm) | 52.50mm |

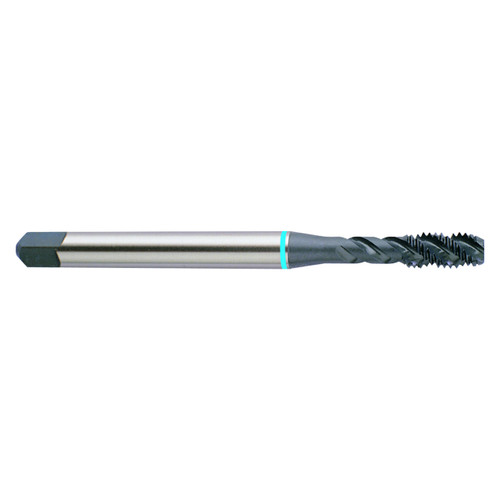

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.5625"
Thread Size (mm):
14.29mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
4.3310"
Overall Length (mm):
110.00mm
interval quantity:
1
