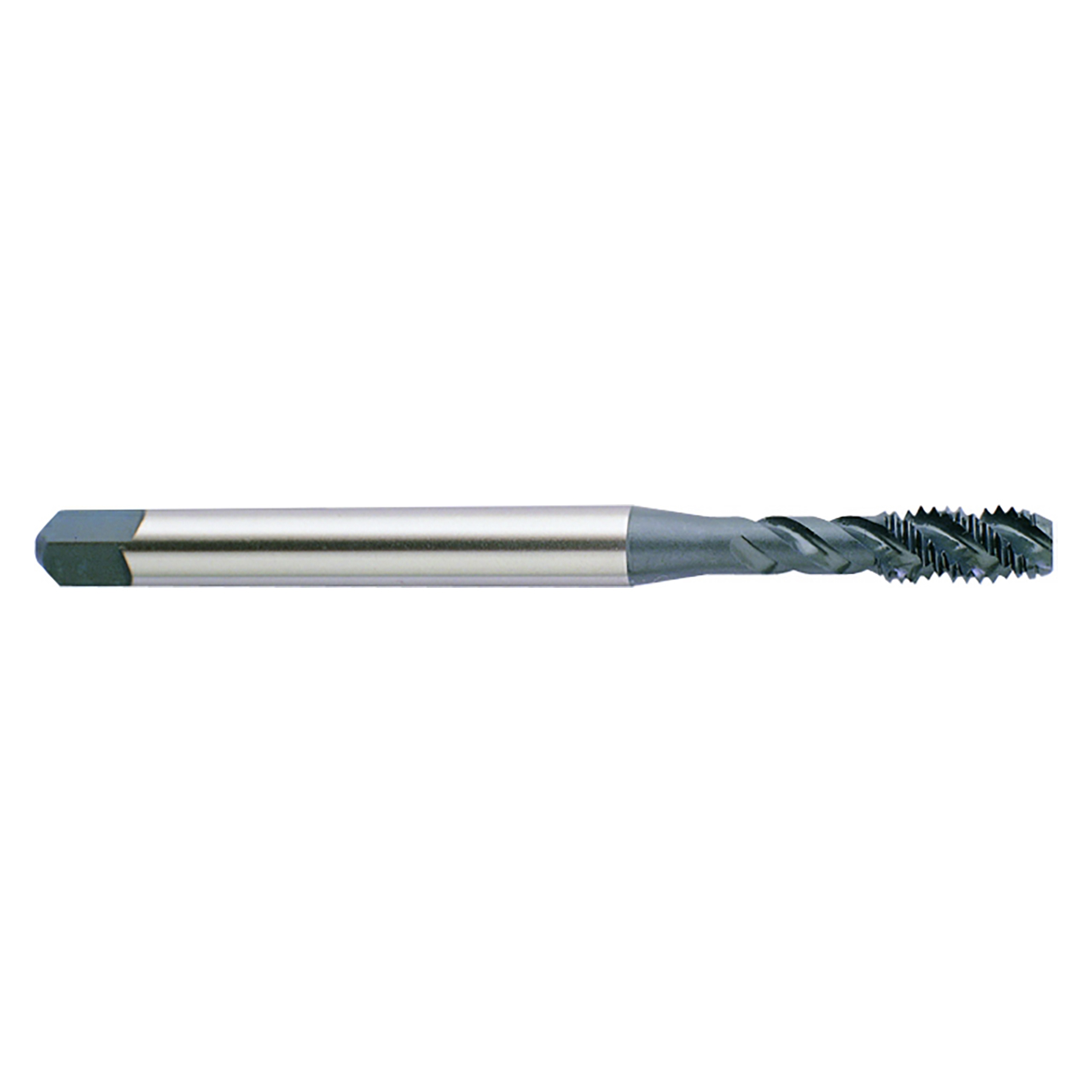

YG1 BW426 | M10x1.5 Thread x 0.3937" Diameter x 0.3810" Shank x 2.9400" OAL 2 Flute Bright Coated HSSE-V3 Spiral Flute Thread Tap

$14.54 $10.47
(You save $4.07)
Brand:
YG1
Number of Flutes:
2
Material:
HSSE-V3
Finish/Coating:
Bright
Through Coolant:
No
Threads per Inch (TPI):
1.5 TPI
Overall Length (Decimal Inch):
2.9400"
Overall Length (mm):
74.68mm
interval quantity:
1
SKU:
15007246
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
# Manufacturer NumberBW426
Diameter (Decimal Inch)0.3937"
Diameter (mm)10.00mm
Thread SizeM10
Pitch1.5 TPI
Shank Diameter (Decimal Inch)0.3810"
Shank Diameter (mm)9.68mm
Overall Length (Decimal Inch)2.9400"
Overall Length (mm)74.68mm
Thread Length (Decimal Inch)0.5120"
Thread Length (mm)13.00mm
Square Length (Decimal Inch)0.4400"
Square Length (mm)11.18mm
Square Size (Decimal Inch)0.2860"
Square Size (mm)7.26mm
Neck Diameter (Decimal Inch)0.3100"
Neck Diameter (mm)7.87mm
Useable Length (Decimal Inch)1.2520"
Useable Length (mm)31.80mm
Drill Size (Decimal Inch)0.3400"
Drill Size (mm)8.64mm
Number of Flutes2
Pitch LimitD6
Helix Angle (Degree)50 Degree
Coolant ThroughNo
Shank TypeSquare
Finish / CoatingBright
MaterialHSSE-V3
Chamfer Length2P-3P
Chamfer TypeModified Bottoming
Product TypeSpiral Flute Thread Tap
