Product Specifications
| # Manufacturer Number | D8764 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (mm) | 22.23mm |
| Thread Size | 7/8" |
| Pitch | 14 TPI |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Overall Length (Decimal Inch) | 4.6900" |
| Overall Length (mm) | 119.13mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Neck Diameter (Decimal Inch) | 0.6850" |
| Neck Diameter (mm) | 0.00mm |
| Useable Length (Decimal Inch) | 2.8150" |
| Useable Length (mm) | 71.50mm |
| Drill Size (Decimal Inch) | 0.8101" |
| Drill Size (mm) | 20.58mm |
| Number of Flutes | 3 |
| Pitch Limit | H4 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Hardslick |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

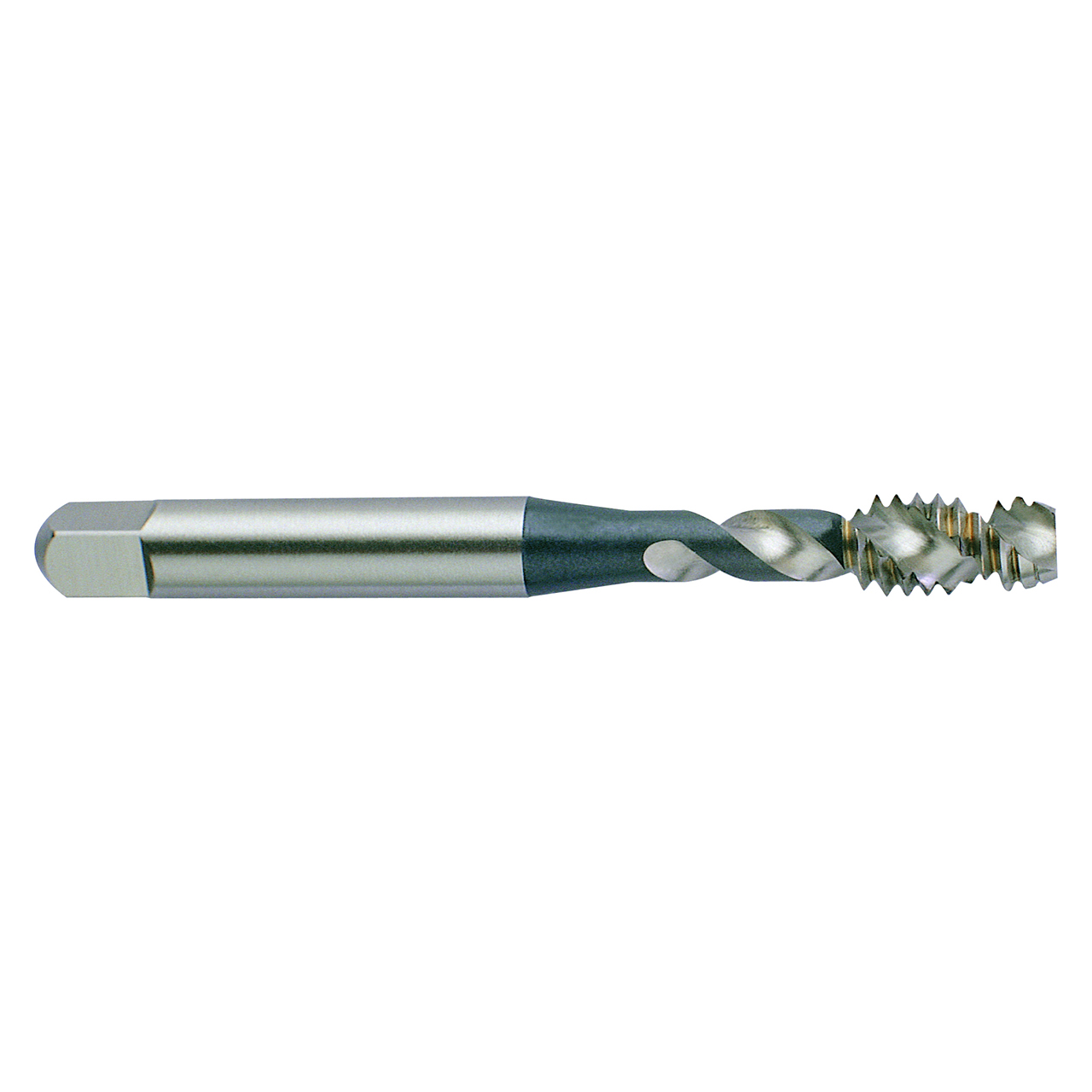

| Product Type | Spiral Flute Thread Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
7/8"
Thread Size (Decimal Inch):
0.8750"
Thread Size (mm):
22.23mm
Number of Flutes:
3
Material:
HSSE-V3
Finish/Coating:
Hardslick
Through Coolant:
No
Threads per Inch (TPI):
14 TPI
Overall Length (Decimal Inch):
4.6900"
Overall Length (mm):
119.13mm
