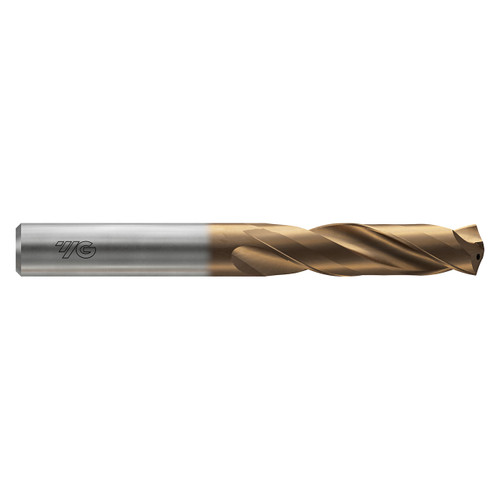

YG1 DGN506057 | 0.2244" Diameter x 0.2362" Shank x 2.5984" OAL 3XD Length 140 Degree Point Angle 2 Flute Z-Coated Carbide Coolant Fed Drill

$120.57 $86.81
(You save $33.76)
Brand:
YG1
Drill Size (Inch):
11/49"
Drill Size (Decimal Inch):
0.2244"
Drill Size (mm):
5.70mm
Drill Point Angle:
140 Degree
Finish/Coating:
Z-Coated
Material:
Carbide
Coolant Through:
Yes
interval quantity:
1
SKU:
10215925
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberDGN506057
Diameter (Decimal Inch)0.2244"
Diameter (Inch)11/49"
Diameter (mm)5.70mm
Shank Diameter (Decimal Inch)0.2362"
Shank Diameter (Inch)13/55"
Shank Diameter (mm)6.00mm
Flute Length (Decimal Inch)1.1024"
Flute Length (Inch)14336"
Flute Length (mm)28.00mm
Overall Length (Decimal Inch)2.5984"
Overall Length (Inch)2-3/5"
Overall Length (mm)66.00mm
Point Length (Decimal Inch)0.0408"
Point Length (mm)1.04mm
SeriesDGN506
Number of Flutes2
Shank Toleranceh6
Hole Tolerancem7
Point Angle (Degree)140 Degree
Length/Diameter3XD
CoatingZ-Coated
MaterialCarbide
Coolant Pressure20 Bar
Blank StandardDIN6537
Coolant ThroughYes
ApplicationP, K
Cutting DirectionRight Hand
TypeDream Drill Pro with Coolant Holes (3xD Short)
Product TypeCoolant Fed Drill
