Product Specifications
| Diameter (Decimal Inch) | DH404170 |
| Diameter (Decimal Inch) | 0.6700" |
| Diameter (Inch) | 2/3" |
| Diameter (mm) | 17.00mm |
| Shank Diameter (Decimal Inch) | 0.6693" |
| Shank Diameter (Inch) | 2/3" |
| Shank Diameter (mm) | 17.00mm |
| Flute Length (Decimal Inch) | 2.3622" |
| Flute Length (Inch) | 2-25/69" |
| Flute Length (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 4.6850" |
| Overall Length (Inch) | 4-37/54" |
| Overall Length (mm) | 119.00mm |
| Point Length (Decimal Inch) | 0.1218" |
| Point Length (mm) | 3.09mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | M7 |
| Blank Standard | DIN 6539 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

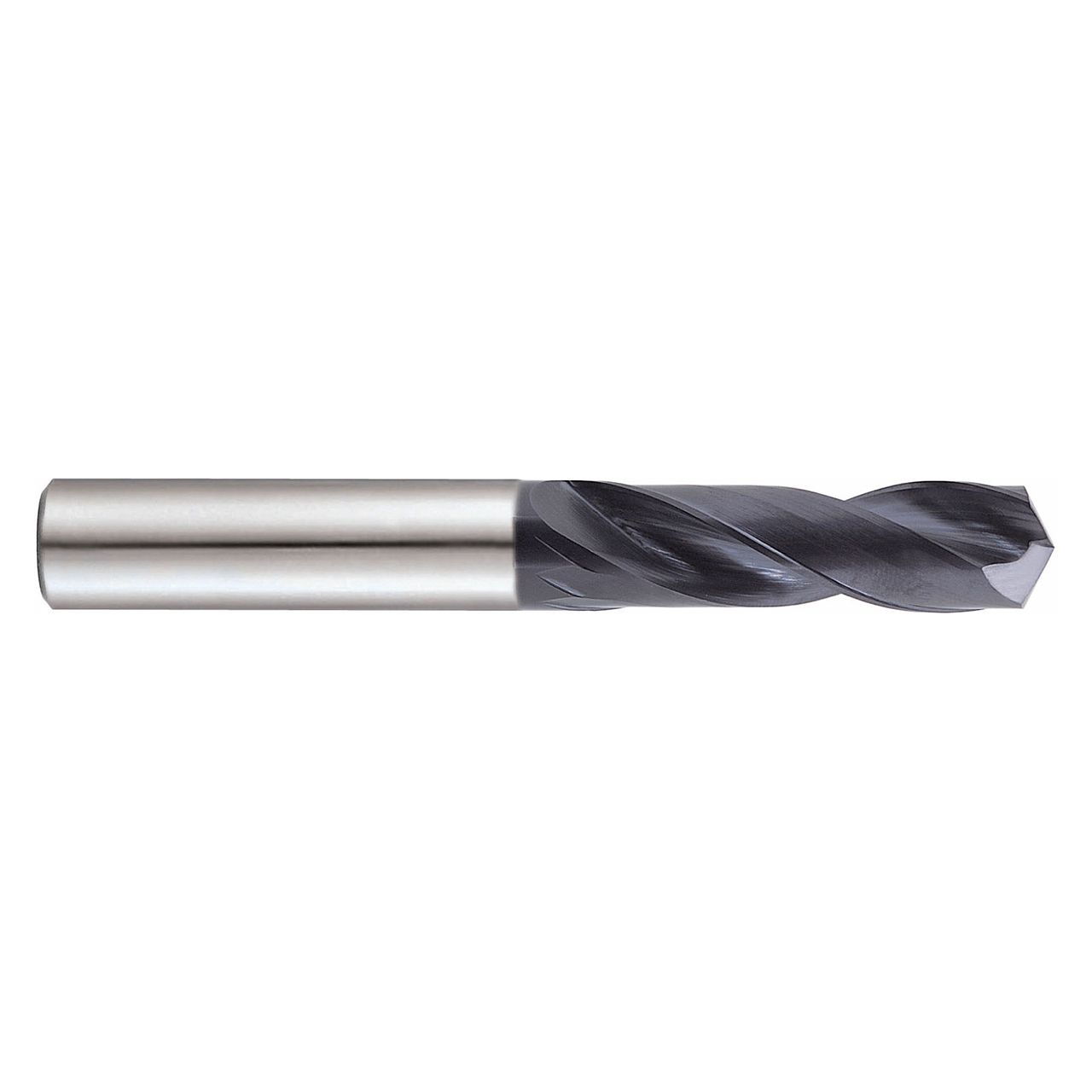

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
2/3"
Drill Bit Size (Decimal Inch):
0.6700"
Drill Bit Size (mm):
17.00mm
Flute Length (Inch):
2-25/69"
Flute Length (Decimal Inch):
2.3622"
Flute Length (mm):
119.00mm
Overall Length (Inch):
4-37/54"
Overall Length (Decimal Inch):
4.6850"
Overall Length (mm):
119.00mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
