Product Specifications

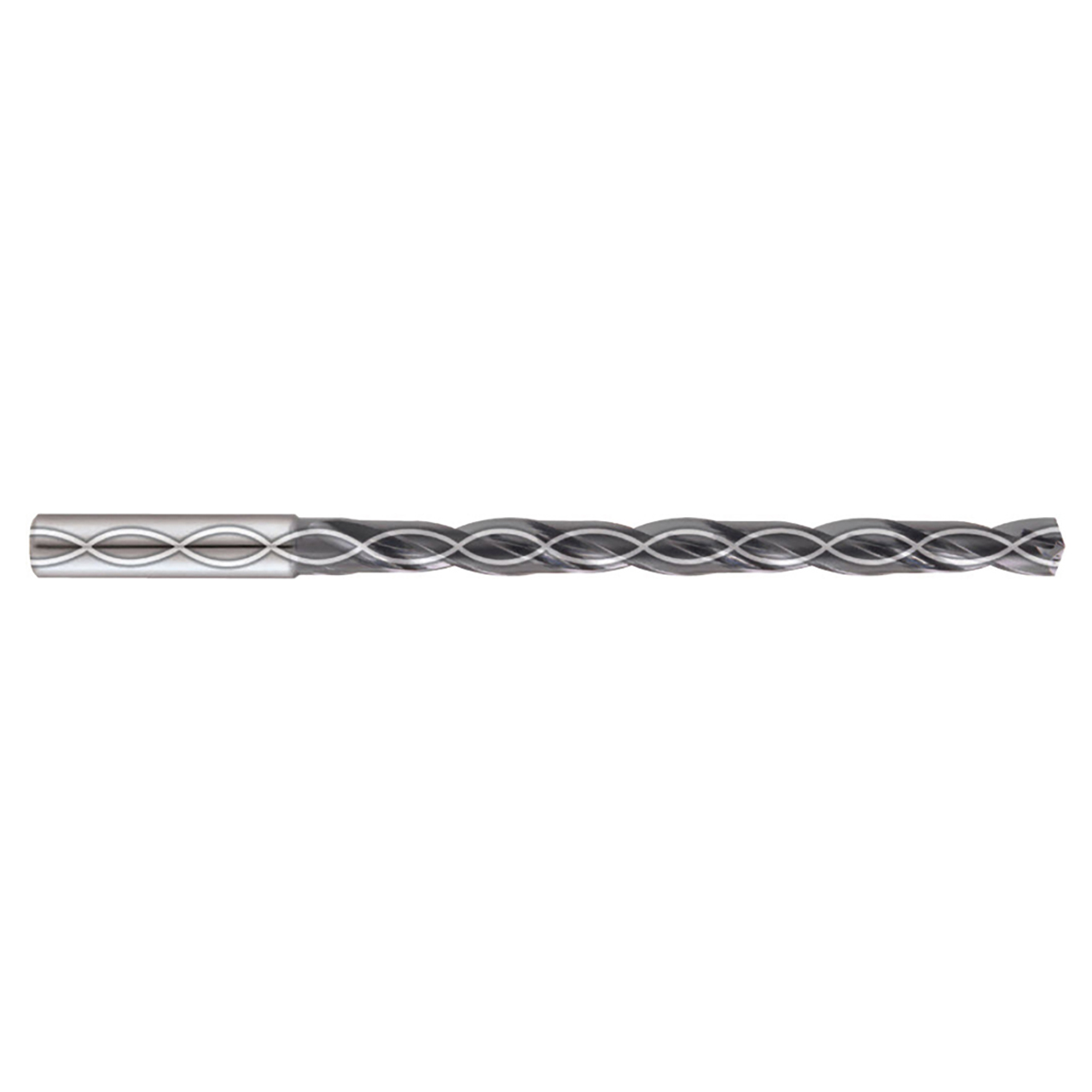

| Manufacturer Part Number | DH453143 |
| Cutting Diameter (Inch) | 9/16" |
| Cutting Diameter (Decimal Inch) | 0.563" |
| Cutting Diameter (mm) | 14.30mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.629" |
| Shank Diameter (mm) | 16.00mm |
| Flute Length (Inch) | 5-62/63" |
| Flute Length (Decimal Inch) | 5.984" |
| Flute Length (mm) | 152.00mm |
| Overall Length (Inch) | 8" |
| Overall Length (Decimal Inch) | 2.992" |
| Overall Length (mm) | 203.00mm |
| Point Length (Decimal Inch) | 0.102" |
| Point Length (mm) | 2.60mm |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Material | Carbide |
| Coating | TiAIN |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter
(Inch):
9/16";Diameter
(Decimal Inch)=0.5630"""""
Diameter
(mm):
14.30mm
Shank Diameter
(Inch):
17/27";Shank Diameter
(Decimal Inch)=0.6290"""""
Shank Diameter
(mm):
16.00mm
Flute Length
(Inch)):
5-62/63";Flute Length
(Decimal Inch))=5.9840"""""
Flute Length
(mm):
152.00mm
Point Length
(Inch):
5/49";Point Length (Decimal Inch)=0.1020"""""
Point Length
(mm):
2.60mm
Helix
Angle:
30 Degree
Coating:
TiAIN
Material:
Carbide
Cutting
Direction:
Right Hand
Number of Flutes:
2
interval quantity:
1
