Product Specifications
| Manufacturer Part Number | DN515209 |
| Diameter (Inch) | 10/51" |
| Diameter (Decimal Inch) | 0.1960" |
| Diameter (mm) | 4.98mm |
| Shank Diameter (Inch) | 10/51" |
| Shank Diameter (Decimal Inch) | 0.1960" |
| Shank Diameter (mm) | 4.98mm |
| Flute Length (Inch) | 1-3/16" |
| Flute Length (Decimal Inch) | 1.1900" |
| Flute Length (mm) | 30.16mm |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (mm) | 57.15mm |
| Point Length (Decimal Inch) | 0.0457" |
| Point Length (mm) | 1.16mm |
| Wire Size | #9 |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

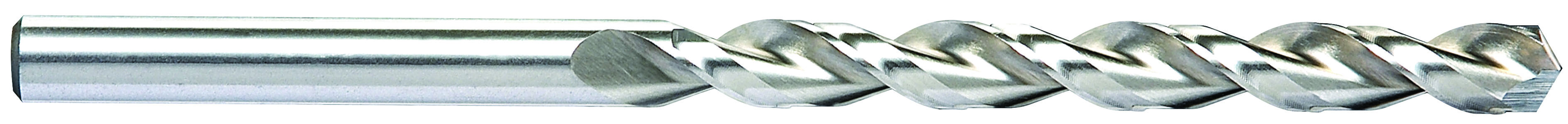

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-3/16"
Flute Length (Decimal Inch):
1.1900"
Flute Length (mm):
30.16mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2500"
Overall Length (mm):
57.15mm
Material:
HSS-E
Finish/Coating:
TiN
