Product Specifications

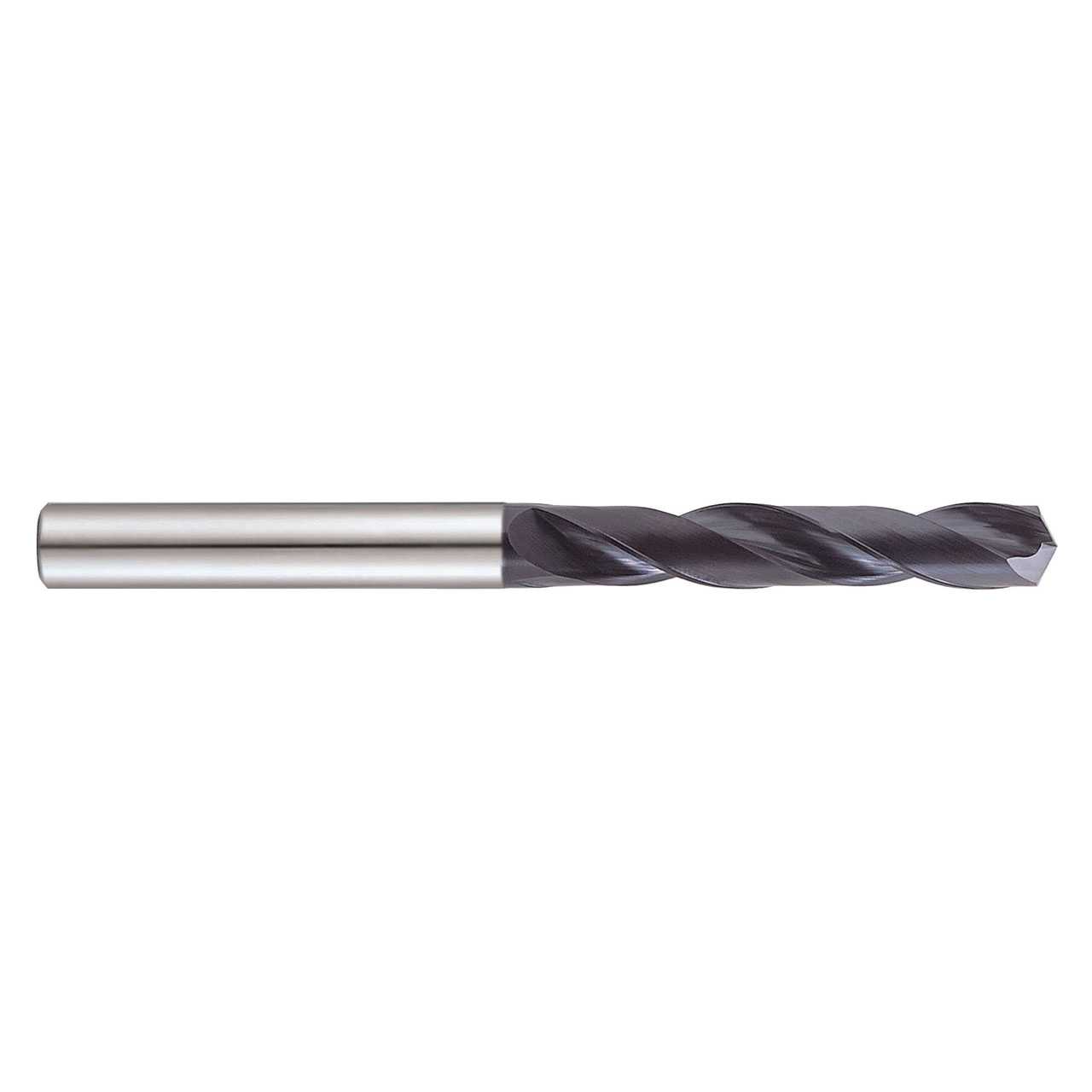

| Manufacturer Part Number | DTX414018 |
| Cutting Diameter (Inch) | 9/32" |
| Cutting Diameter (Decimal Inch) | 0.281" |
| Cutting Diameter (mm) | 7.14mm |
| Shank Diameter (Inch) | 9/32" |
| Shank Diameter (Decimal Inch) | 0.281" |
| Shank Diameter (mm) | 7.14mm |
| Flute Length (Inch) | 1-3/4" |
| Flute Length (Decimal Inch) | 1.750" |
| Flute Length (mm) | 44.45mm |
| Overall Length (Inch) | 3-7/16" |
| Overall Length (Decimal Inch) | 3.437" |
| Overall Length (mm) | 87.31mm |
| Point Length (Decimal Inch) | 0.051" |
| Point Length (mm) | 1.30mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
9/32"
Cutting Diameter (Decimal Inch):
0.2810"
Cutting Diameter (mm):
7.14mm
Shank Diameter (Inch):
9/32"
Shank Diameter (Decimal Inch):
0.2810"
Shank Diameter (mm):
7.14mm
Flute Length (Inch):
1-3/4"
Flute Length (Decimal Inch):
1.7500"
Flute Length (mm):
44.45mm
Overall Length (Inch):
3-7/16"
Overall Length (Decimal Inch):
3.4370"
Overall Length (mm):
87.31mm
Point Length (Inch):
5/98"
Point Length (Decimal Inch):
0.0510"
Point Length (mm):
1.30mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
interval quantity:
1
