Product Specifications
| Manufacturer Part Number | DTX418023 |
| Cutting Diameter (Inch) | 23/64" |
| Cutting Diameter (Decimal Inch) | 0.359" |
| Cutting Diameter (mm) | 9.13mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.390" |
| Shank Diameter (mm) | 9.92mm |
| Flute Length (Inch) | 3" |
| Flute Length (Decimal Inch) | 3.000" |
| Flute Length (mm) | 76.20mm |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (Decimal Inch) | 5.359" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.065" |
| Point Length (mm) | 1.66mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |

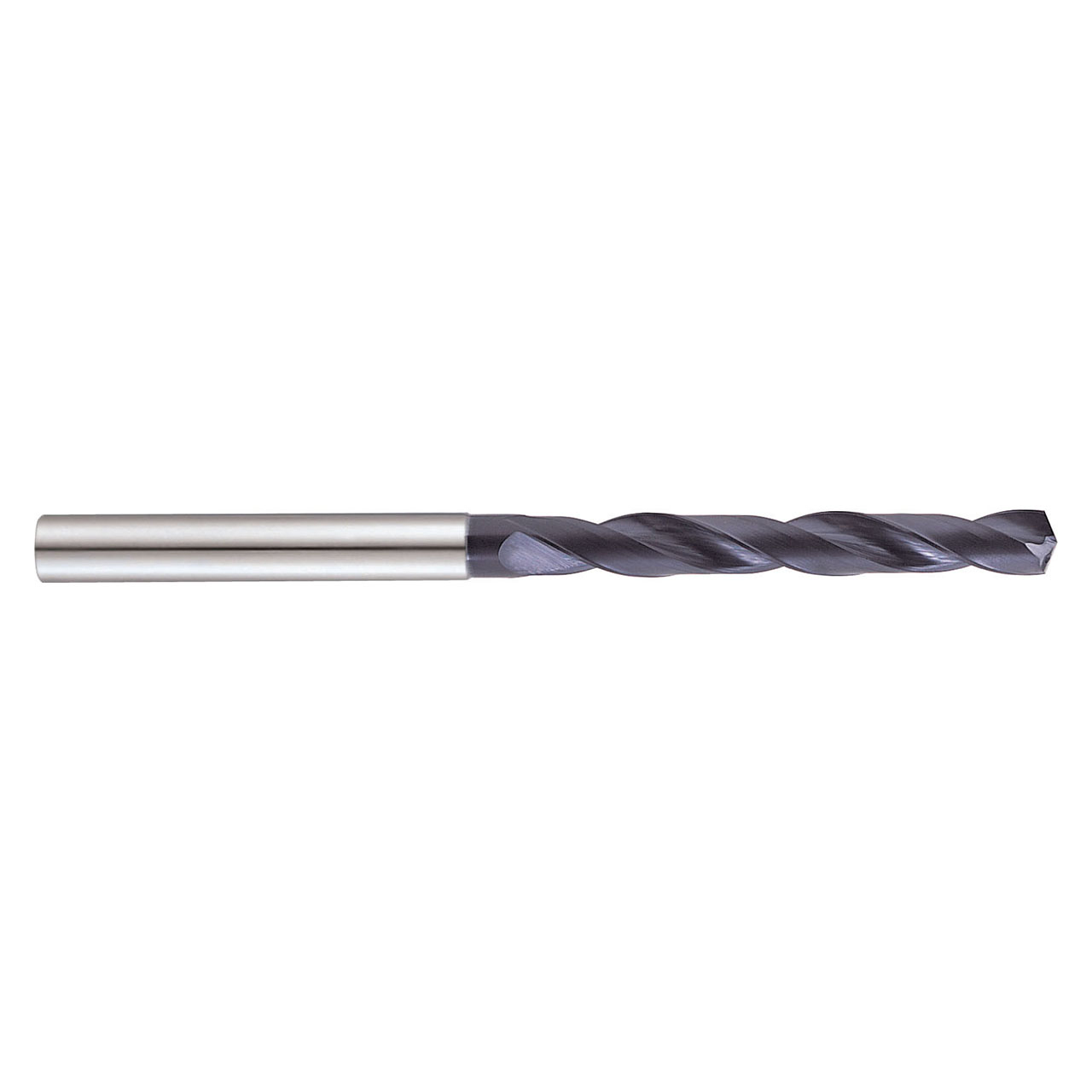

| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
23/64"
Cutting Diameter (Decimal Inch):
0.3590"
Cutting Diameter (mm):
9.13mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
9.92mm
Flute Length (Inch):
3"
Flute Length (Decimal Inch):
3.0000"
Flute Length (mm):
76.20mm
Overall Length (Inch):
5-23/64"
Overall Length (Decimal Inch):
5.3590"
Overall Length (mm):
136.13mm
Point Length (Inch):
5/77"
Point Length (Decimal Inch):
0.0650"
Point Length (mm):
1.66mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
