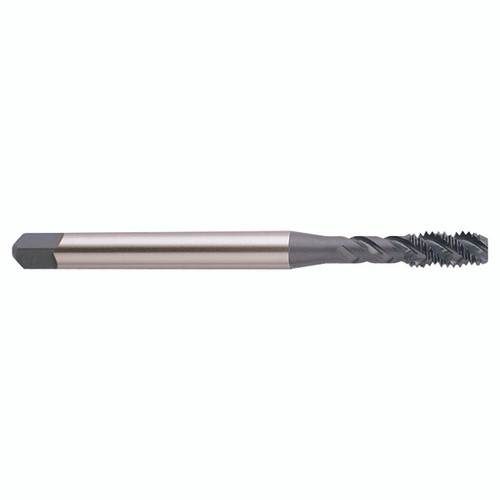

YG1 E2244 | M4x0.7 Thread x 0.1575" Diameter x 0.1680" Shank x 2.1300" OAL 45 Degree Helix Angle 3 Flute Steam Oxide Coated D4 HSSE-V3 Spiral Flute Modified Bottom Tap

$12.63
SKU:
15007909
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberE2244
SizeM4
Pitch (TPI)0.7 TPI
Diameter (Decimal Inch)0.1575"
Diameter (mm)4.00mm
Overall Length (Decimal Inch)2.1300"
Overall Length (mm)54.10mm
Thread Length (Decimal Inch)0.2780"
Thread Length (mm)7.06mm
Square Length (Decimal Inch)0.2500"
Square Length (mm)6.35mm
Shank Diameter (Decimal Inch)0.1680"
Shank Diameter (mm)4.27mm
Square Size (Decimal Inch)0.1310"
Square Size (mm)4.27mm
Neck Diameter (Decimal Inch)0.1190"
Neck Diameter (mm)3.02mm
Drill Size (Decimal Inch)0.1324"
Drill Size (mm)3.36mm
Useable Length (Decimal Inch)0.7680"
Useable Length (mm)19.51mm
Length/Diameter2.5xD
Number of Flutes3
SeriesE2
Thread SeriesM
Pitch LimitD4
Chamfer Length2P-3P
Blank Standard302A
CoatingSteam Oxide
MaterialHSSE-V3
Helix Angle (Degree)45 Degree
Shank TypeSquare
Trade NameYG Tap Steel
Tap TypeSpiral Flute
Chamfer TypeModified Bottoming
Product TypeSpiral Flute Modified Bottom Tap
