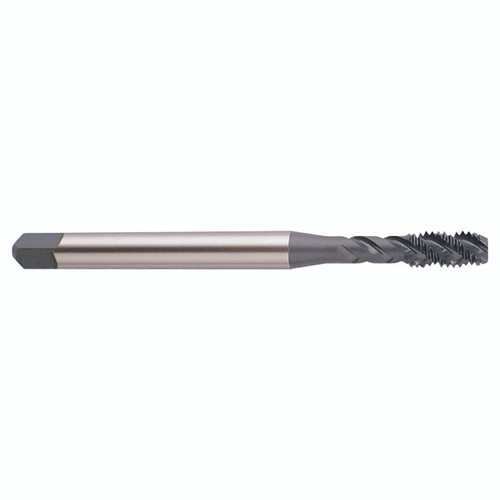

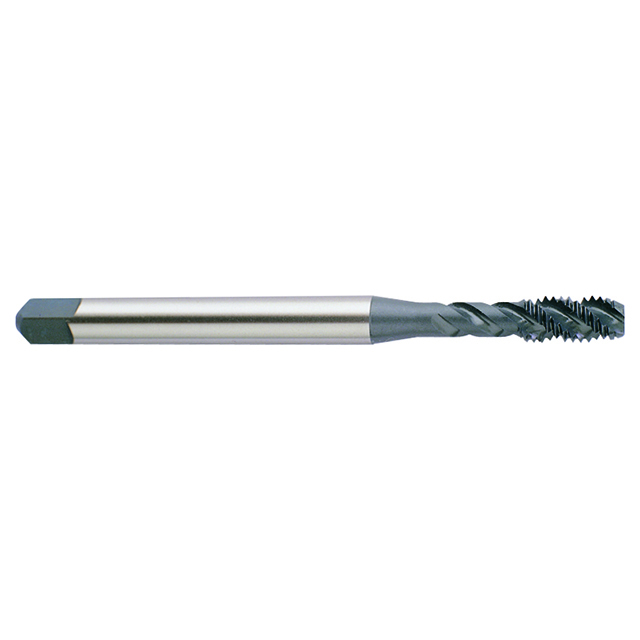

YG1 E2345 | M7x1 Thread x 0.2756" Diameter x 0.3180" Shank x 2.7200" OAL 45 Degree Helix Angle 3 Flute Steam Oxide Coated D5 HSSE-V3 Spiral Flute Modified Bottom Tap

$15.17
SKU:
15007912
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberE2345
SizeM7
Pitch (TPI)1 TPI
Diameter (Decimal Inch)0.2756"
Diameter (mm)7.00mm
Overall Length (Decimal Inch)2.7200"
Overall Length (mm)69.09mm
Thread Length (Decimal Inch)0.4330"
Thread Length (mm)11.00mm
Square Length (Decimal Inch)0.3800"
Square Length (mm)9.65mm
Shank Diameter (Decimal Inch)0.3180"
Shank Diameter (mm)8.08mm
Square Size (Decimal Inch)0.2380"
Square Size (mm)8.08mm
Neck Diameter (Decimal Inch)0.2200"
Neck Diameter (mm)5.59mm
Drill Size (Decimal Inch)0.2398"
Drill Size (mm)6.09mm
Useable Length (Decimal Inch)1.1260"
Useable Length (mm)28.60mm
Length/Diameter2.5xD
Number of Flutes3
SeriesE2
Thread SeriesM
Pitch LimitD5
Chamfer Length2P-3P
Blank Standard302A
CoatingSteam Oxide
MaterialHSSE-V3
Helix Angle (Degree)45 Degree
Shank TypeSquare
Trade NameYG Tap Steel
Tap TypeSpiral Flute
Chamfer TypeModified Bottoming
Product TypeSpiral Flute Modified Bottom Tap
