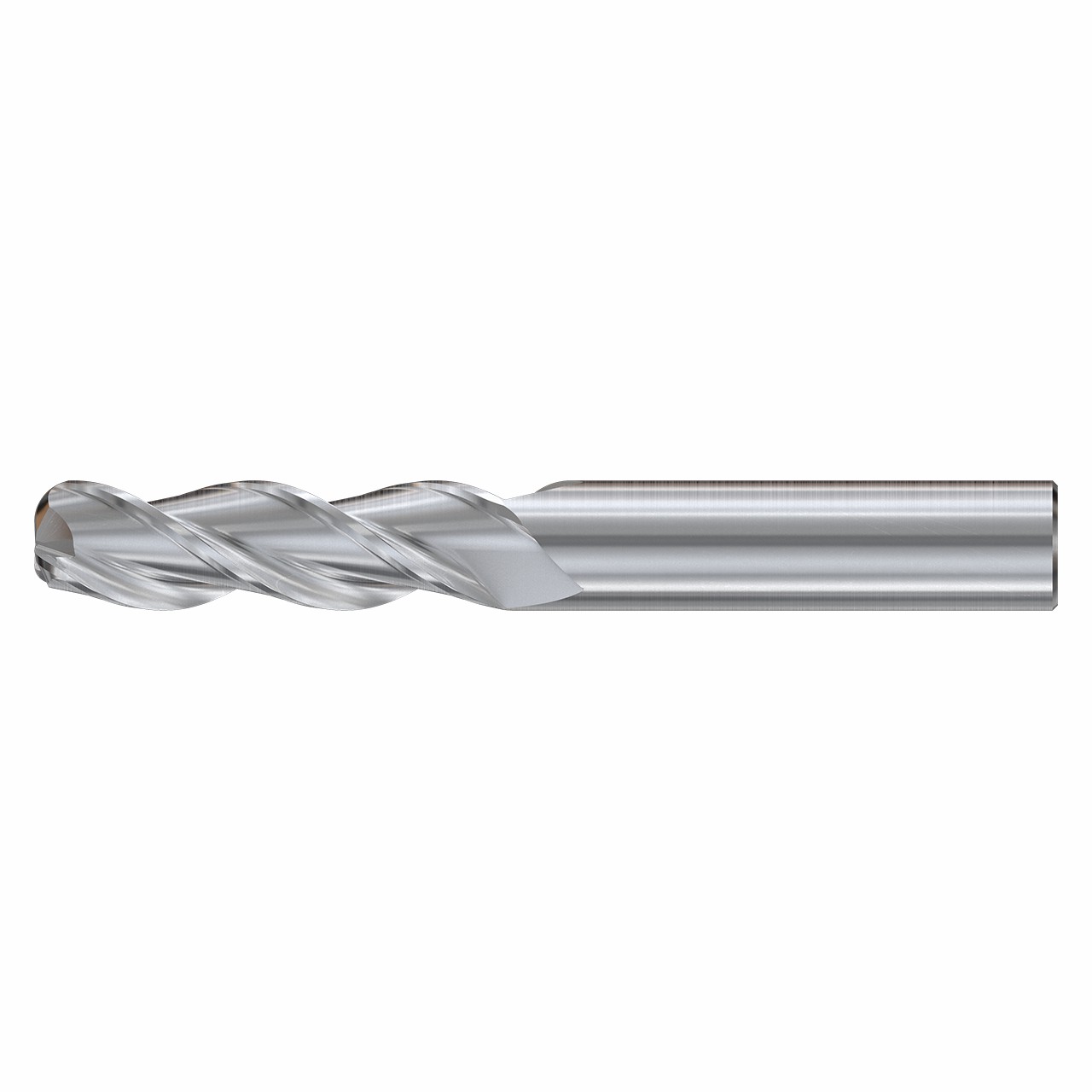

Product Specifications
| Manufacturer Part Number | E5G97895 |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (mm) | 20.64mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0100" |
| Corner Radius (mm) | 0.25mm |
| Number of Flutes | 3 |
| Series | E5G97 |
| Helix Angle | 37 Degree |
| Shank Style | Plain |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Corner Type | Corner Radius |
| Type | Corner Radius |
| Cutting Direction | Right |
| Application | N |
