Product Specifications

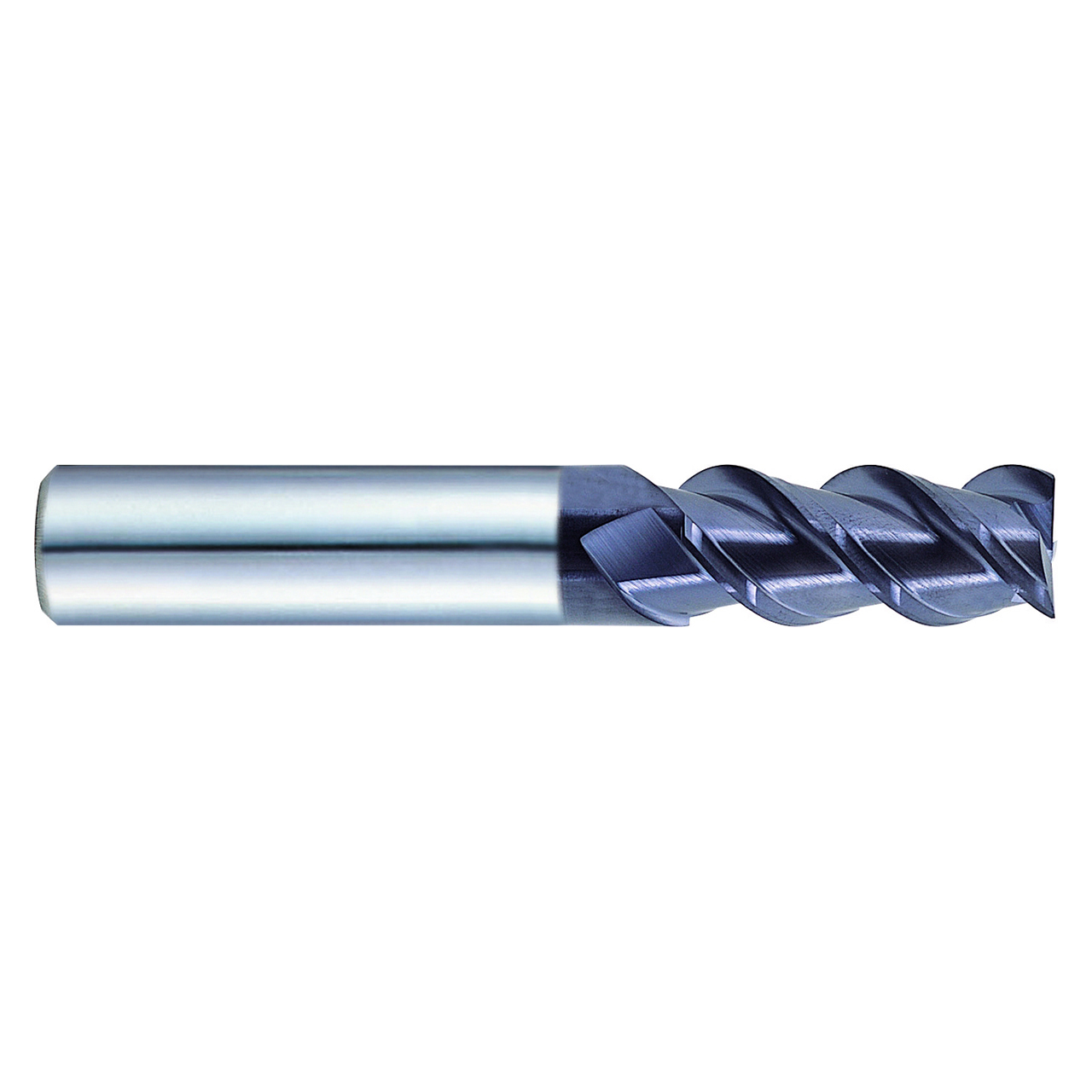

| EDP Number | EH830180 |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (Inch) | 17/24" |
| Diameter (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (mm) | 18.00mm |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (Inch) | 1-20/8" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| Number of Flutes | 3 |
| Series | EH830 |
| Helix Angle (Degree) | 50 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Square End Mill |
