Product Specifications
| EDP Number | EM810040 |
| Diameter (Decimal Inch) | 0.1600" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.4331" |
| Length of Cut (Inch) | 13/30" |
| Length of Cut (mm) | 11.00mm |
| Overall Length (Decimal Inch) | 1.7717" |
| Overall Length (mm) | 45.00mm |
| Overall Length (Inch) | 1-71/92" |
| Number of Flutes | 2 |
| Series | EM810 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

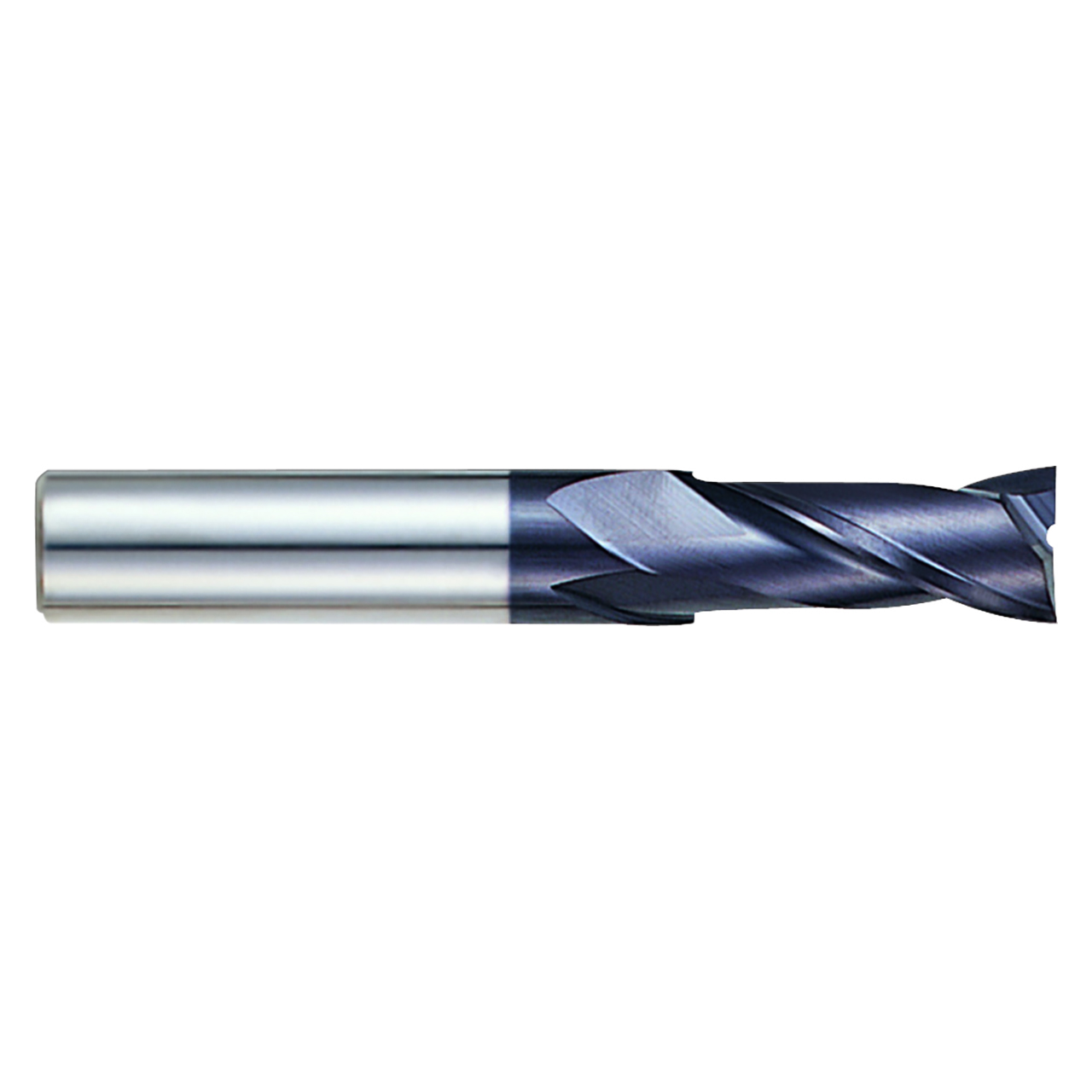

| Produce Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/19"
Mill Diameter (Decimal Inch):
0.1600"
Mill Diameter (mm):
4.00mm
Number of Flutes:
2
Length of Cut (Inch):
13/30"
Length of Cut (Decimal Inch):
0.4331"
Length of Cut (mm):
11.00mm
Material:
Carbide
Finish/Coating:
ALTiN
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Application:
P
Overall Length (Inch):
1-71/92"
Overall Length (Decimal Inch):
1.7717"
Overall Length (mm):
45.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right
