Product Specifications
| EDP Number | EM886008 |
| Diameter (Decimal Inch) | 0.0300" |
| Diameter (Inch) | 3/95" |
| Diameter (mm) | 0.80mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0472" |
| Length of Cut (Inch) | 1/21" |
| Length of Cut (mm) | 1.20mm |
| Length Below Shank (Decimal Inch) | 0.2362" |
| Length Below Shank (Inch) | 13/55" |
| Length Below Shank (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 1.7717" |
| Overall Length (mm) | 45.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0157" |
| Ball Nose Radius (Inch) | 1/63" |
| Overall Length (Inch) | 1-71/92" |
| Neck Diameter (Decimal Inch) | 0.0295" |
| Ball Nose Radius (mm) | 0.40mm |
| Neck Diameter (Inch) | 1/34" |
| Neck Diameter (mm) | 0.75mm |
| Number of Flutes | 2 |
| Series | EM886 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

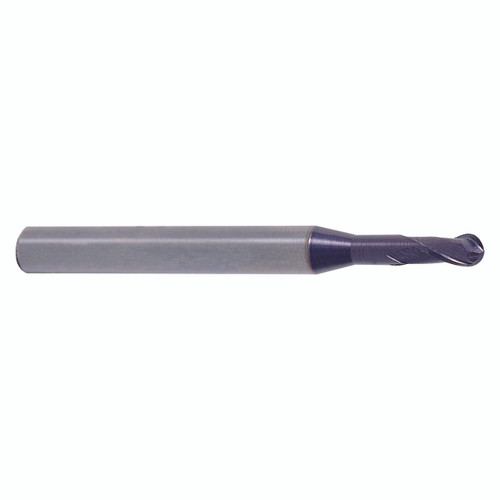

| Produce Type | Ball Nose End Mill |
