Product Specifications
| # Manufacturer Number | EP20482 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 6.2500" |
| Overall Length (Inch) | 6-1/4" |
| Overall Length (mm) | 158.75mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| LBS (Decimal Inch) | 4.0000" |
| LBS (Inch) | 4" |
| LBS (mm) | 101.60mm |
| Helix Angle (Degree) | 35 Degree |
| Number of Flute | 5 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9921 |
| Cutting Direction | Right |

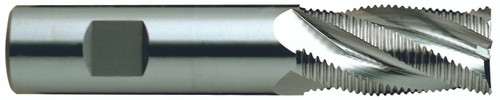

| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Material:
Premium HSS-PM
Finish/Coating:
Bright
Overall Length (Inch):
6-1/4"
Overall Length (Decimal Inch):
6.2500"
Overall Length (mm):
158.75mm
Center Cutting (yes/no):
Yes
