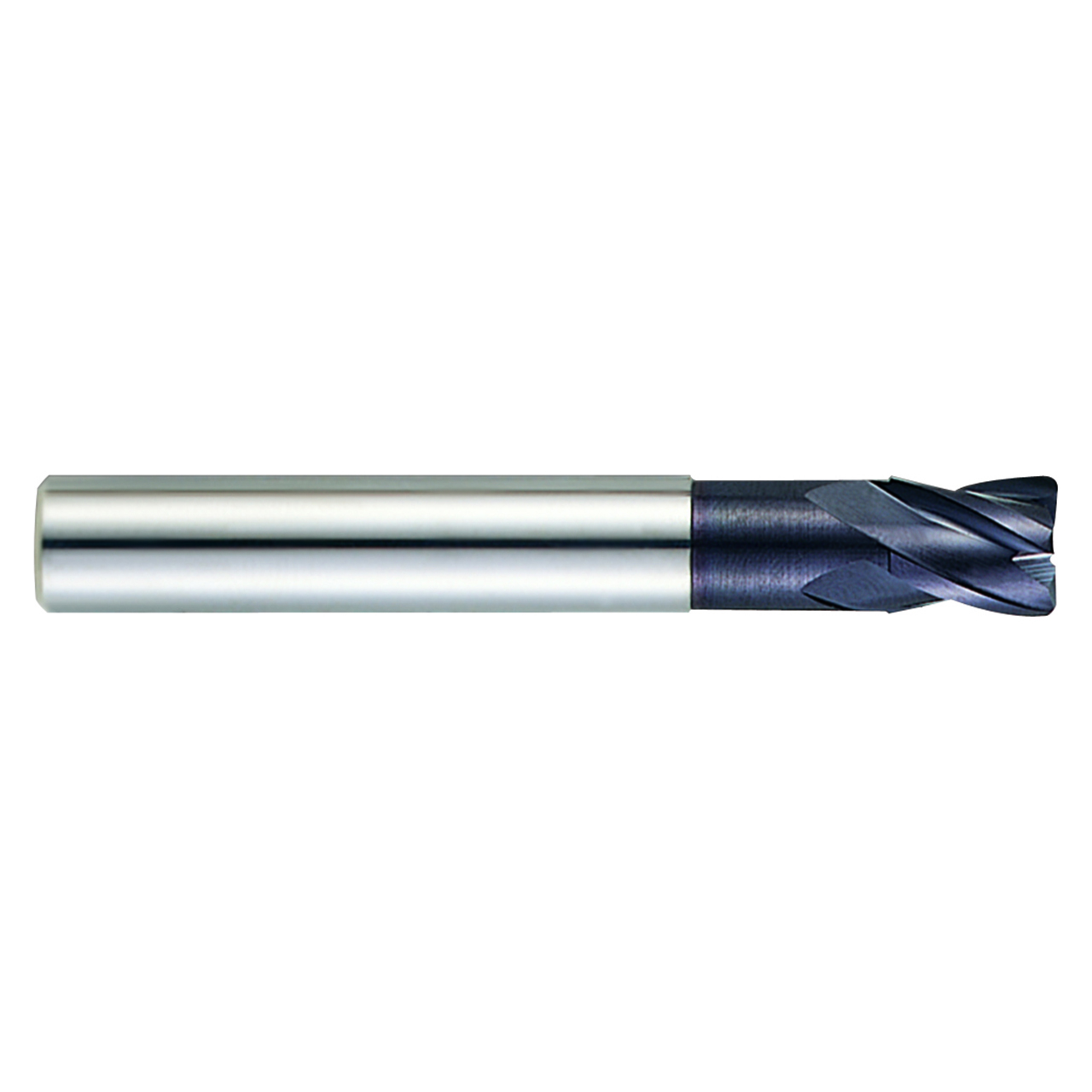

Product Specifications
| Manufacturer Part Number | GM839030 |
| Mill Diameter (Inch) | 2/17" |
| Mill Diameter (Decimal Inch) | 0.1181" |
| Mill Diameter (mm) | 3.00mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 3/19" |
| Length of Cut (Decimal Inch) | 0.1575" |
| Length of Cut (mm) | 4.00mm |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Corner Radius (Inch) | 3/254" |
| Corner Radius (Decimal Inch) | 0.0118" |
| Corner Radius (mm) | 0.30mm |
| LBS (Inch) | 8/29" |
| LBS (Decimal Inch) | 0.2756" |
| LBS (mm) | 7.00mm |
| Neck Diameter (Inch) | 11/98" |
| Neck Diameter (Decimal Inch) | 0.1122" |
| Neck Diameter (mm) | 2.85mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 4 |
| Shank Type | Plain |
| Material | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
2/17"
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (mm):
3.00mm
Number of Flutes:
4
Length of Cut (Inch):
3/19"
Length of Cut (Decimal Inch):
0.1575"
Length of Cut (mm):
4.00mm
Material:
Carbide
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Corner Radius (Inch):
3/254"
Corner Radius (Decimal Inch):
0.0118"
Corner Radius (mm):
0.30mm
