Product Specifications
| Manufacturer Part Number | GM886921 |
| Mill Diameter (Inch) | 3/76" |
| Mill Diameter (Decimal Inch) | 0.0394" |
| Mill Diameter (mm) | 1.00mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 1/17" |
| Length of Cut (Decimal Inch) | 0.0591" |
| Length of Cut (mm) | 1.50mm |
| Overall Length (Inch) | 1-71/92" |
| Overall Length (Decimal Inch) | 1.7717" |
| Overall Length (mm) | 45.00mm |
| Ball nose Radius (Inch) | 1/51" |
| Ball Nose Radius (Decimal Inch) | 0.0197" |
| Ball Nose Radius (mm) | 0.50mm |
| LBS (Inch) | 3/19" |
| LBS (Decimal Inch) | 0.1575" |
| LBS (mm) | 4.00mm |
| Neck Diameter (Inch) | 3/80" |
| Neck Diameter (Decimal Inch) | 0.0374" |
| Neck Diameter (mm) | 0.95mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

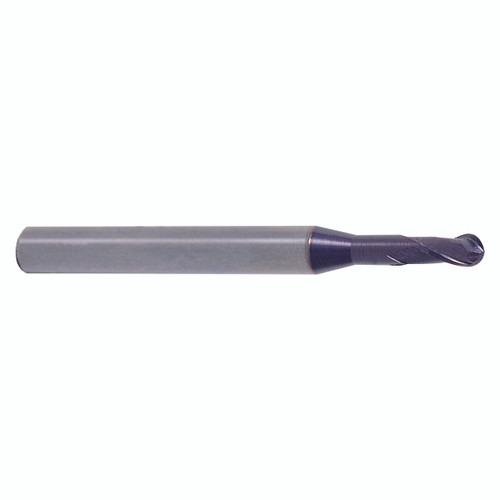

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/76"
Mill Diameter (Decimal Inch):
0.0394"
Mill Diameter (mm):
1.00mm
Number of Flutes:
2
Length of Cut (Inch):
1/17"
Length of Cut (Decimal Inch):
0.0591"
Length of Cut (mm):
1.50mm
Material:
Carbide
Overall Length (Inch):
1-71/92"
Overall Length (Decimal Inch):
1.7717"
Overall Length (mm):
45.00mm
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
